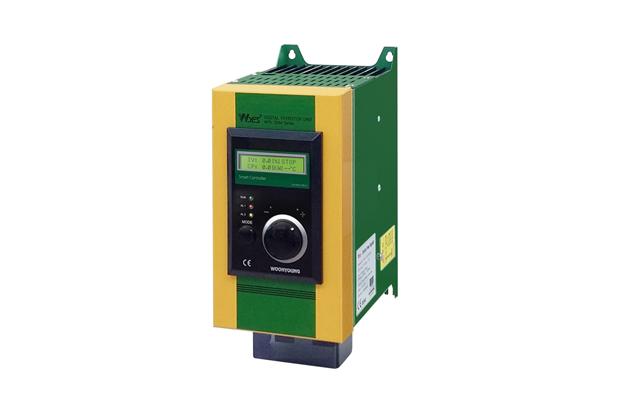

Thyristor Unit 1Phase 90~500V
Model Name
WYU-SD90SM
Series
Thyristor Unit
Data
WYU_SD90_160SM_외형도.DWG
Manufacturer information
provider logo
WOONYOUNG

Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more

Problem with product info?
Update request
Manufacturer
WOONYOUNG
Brand
-
SKU
131726
Product Name
Thyristor Unit 1Phase 90~500V
Model Name
WYU-SD90SM, WYU-SD110SM, WYU-SD130SM, WYU-SD160SM
Size
-
Weight
-
Product Details
Model No WYU-SD90SM WYU-SD110SM WYU-SD130SM WYU-SD160SM
TYPE 1Phase
Certification
Rating 90V~500V
Input 1VDC~5VDC DC4~20mA
Output 90V~500V
Capacity 90A 110A 130A 160A



Specifications and Features

As a single-phase digital power control unit, this product has an option to select phase control or cycle control, has an option to select a constant voltage, a constant current or a constant power on an LCD to enable any correction with one product, displays the control state, output current, radiator state, etc. on an LCD to notify the load conditions, has alarm contacts for safer use, and adopts a RS-485 communication method to be monitored even remotely.
