This product is manufactured by
WOONYOUNG
TOP
Model Name
W12CDB
Data
Catalog-WOONYOUNG-Medium Voltage (CT) DIN-Winding type-12kV CT- W12CDB W12CDB(R)
Manufacturer information
WOONYOUNGVarious electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Brand
-
SKU
132524
Product Name
Medium Voltage (CT) DIN-Winding type
Model Name
W12CDB, W12CDB(R)
Size
-
Weight
-
Product Details
| Model No | W12CDB W12CDB(R) |
|---|---|
| TYPE | DIN-Winding type |
| Certification | |
| Rating | 5A or 1A |
| Input | 3.6~12kV, 20~3200A |
| Output | 1.0, 15~40VA, N＞10, 20 |
| Capacity | 8~40kA |
Specifications and Features

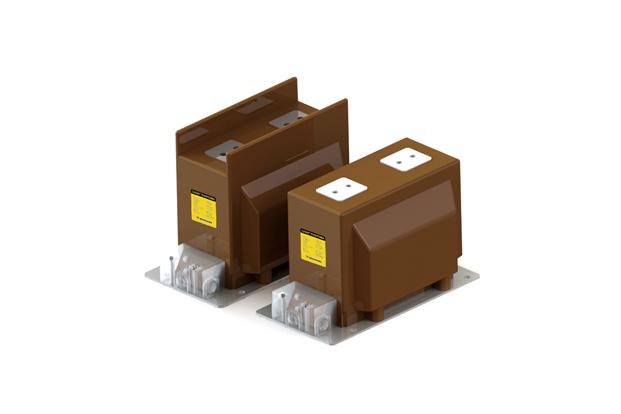

The W12CDB(R)/W12CDB current transformer is an indoor epoxy resin cast product designed in a maximum circuit voltage 12㎸-class insulation performance, and the less voltage(3.6㎸, 7.2㎸) product has the same dimensions.
This product has a miniature light-weight compact structure of support type designed according to the international standard DIN42600(Part 8) to be very suitable for standard switchboards installed in a narrow space.
In addition, this can be designed and fabricated in a single or multiple ratio type such as 1 core and 2 cores.
