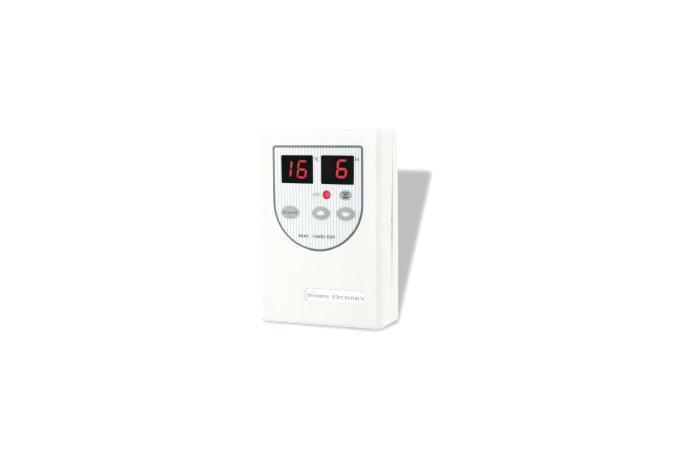

Heating, Cooling, Temperature indicator, Digital temperature controlling device and more
Housing | ABS incombustibility grade V0 |
Dimension | H80xL120xD41mm |
Input Sensor | NTC 5KΩ、25℃ |
Resolution | 1℃ |
Power Supplay | 220V 50/60Hz (order production: 110V, 240V 50/60Hz) |
Temp Range | 0 ~ 50℃ |
Output | 20A 250V AC (Available capacity: 2.5 kw/h) |
Output type | ON/Off Relay control |
Uses | Applicable to the heaters for heating (floor heating panel, Heating film) |
Wall-hanging or cradle-type installation |
