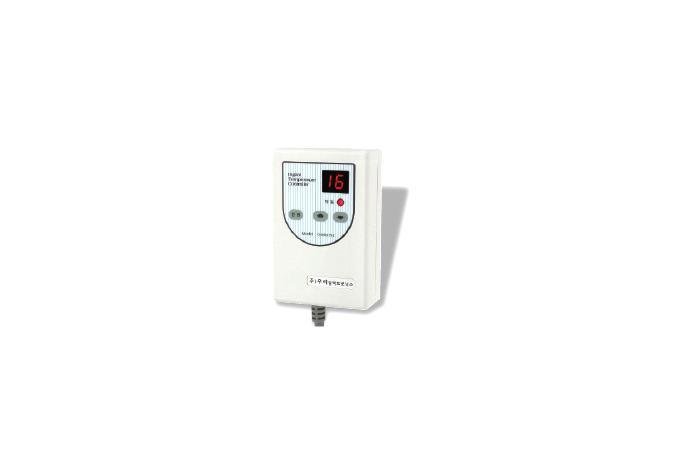

Heating, Cooling, Temperature indicator, Digital temperature controlling device and more
Selected value | ON Minute | OFF Minute |
1 | 30 second | 1minute |
2 | 1minute | 1minute |
3 | 2minute | 1minute |
4 | 4minute | 1minute |
5 | 7minute | 1minute |
6 | 10minute | 1minute |
ON | 13minute | 1minute |
Housing | ABS incombustibility grade V0 |
Dimension | H80xL120xD36mm |
Input Sensor | No-sensor |
Power Supplay | 220V 50/60Hz (order production: 110V, 240V 50/60Hz) |
Temp Range | 1 ~ 7grade |
Output | 6A 250V AC |
Output type | ON/Off Relay control |
Uses |
Applicable to the heaters for heating (floor heating panel, Heating film) |
Electric floor heating panel (Ondol) | 1heating -5sheets |
Film heating | 1.25 kW/h. |
