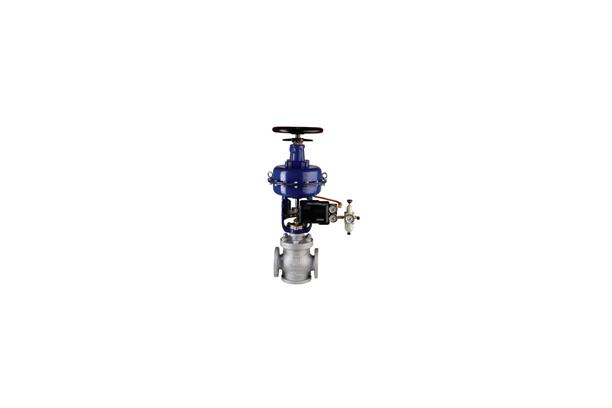

CONTROL VALVE : 2CDC-1F
- This is the valve that control the temperature, pressure and level of a various fluid in main system of ship or plant.
- This valve can do precise control.
- Few change of differential pressure.
SPECIFICATION
Category | Content | ||
TYPE | Pneumatic Diaphragm | ||
Fluid | Water , Steam, Oil, Liquid | ||
Meterial | Body | FCD450, SC480, Stainless steel | |
Trim | Stainless steel | ||
Trim Characteristics | Equal Percentage , Linear | ||
Design Pressure | 20kgf/cm2 Less than | 2.0 Mpa Less than | |
Design temperature | 220︒C | ||
Connection Code | JIS B2220 , ANSI B16.5, DIN2511 FLANGE | ||
Basic Accessory | Positioner , Air set , Sensor , Manual Handle |
DIMENSION
SIZE | L | H | H1 | H2 |
15A | 136 | 57 | 113 | 494 |
20A | 140 | 57 | 113 | 494 |
25A | 150 | 65 | 116 | 494 |
32A | 190 | 66 | 133 | 494 |
40A | 190 | 66 | 133 | 494 |
50A | 222 | 90 | 165 | 554 |
65A | 290 | 101 | 174 | 554 |
80A | 310 | 109 | 202 | 638 |
100A | 350 | 128 | 229 | 638 |
125A | 390 | 156 | 237 | 772 |
150A | 451 | 180 | 285 | 772 |
200A | 567 | 215 | 356 | 978 |
250A | 690 | 235 | 387 | 978 |
