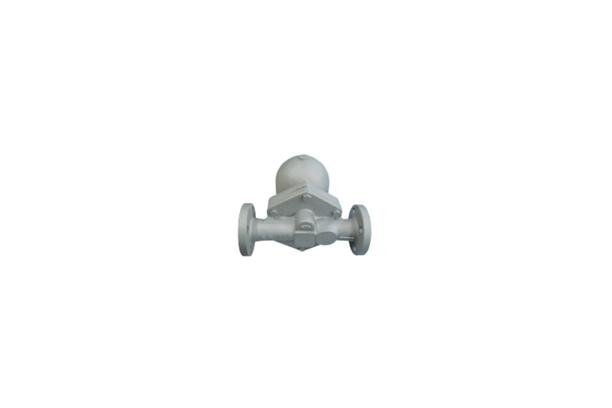

AIR TRAP : TAT-3F
- This valve prevent the loss of the compressed air by discharging the compensate water.
- This can be maintain easily because of the simple structure.
SPECIFICATION
Category | Content | ||
TYPE | BALL FLOAT | ||
Fluid | Air | ||
Meterial | Body | SC480 | |
Trim | Stainless steel | ||
Design Pressure | 30kgf/cm2 Less than | 3.0 Mpa Less than | |
Design temperature | 100︒C | ||
Connection Code | JIS B2220 30K FLANGE |
DIMENSION
SIZE | L | H | H1 |
15A | 120 | 120 | 155 |
20A | 120 | 120 | 155 |
25A | 120 | 120 | 155 |
