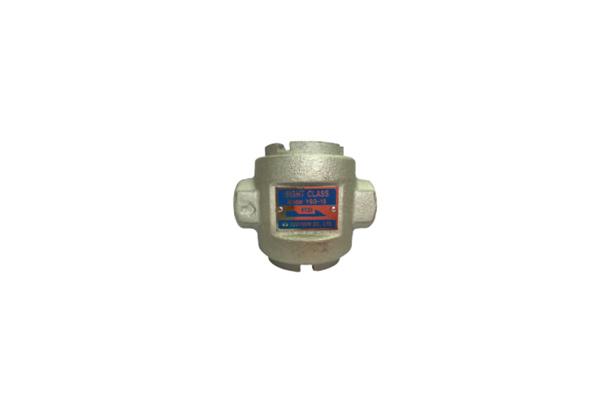

SIGHT GLASS : YSG-1S
- This valve can check the condition of steam trap and prevent back flow.
SPECIFICATION
Category | Content | ||
TYPE | FLAPPER | ||
Fluid | Steam / Air / Liquid /Water | ||
Meterial | Body | FCD450 | |
Trim | Stainless steel | ||
Design Pressure | 10kgf/cm2 Less than | 10 Mpa Less than | |
Design temperature | 220︒C | ||
Connection Code | JIS B0203 THREAD |
DIMENSION
SIZE | L | H | d(PT) |
15A | 95 | 85 | 1/2" |
20A | 95 | 85 | 3/4" |
25A | 100 | 85 | 1" |
32A | 155 | 113 | 1-1/4" |
40A | 155 | 113 | 1-1/2" |
50A | 161 | 128 | 2" |
