Features

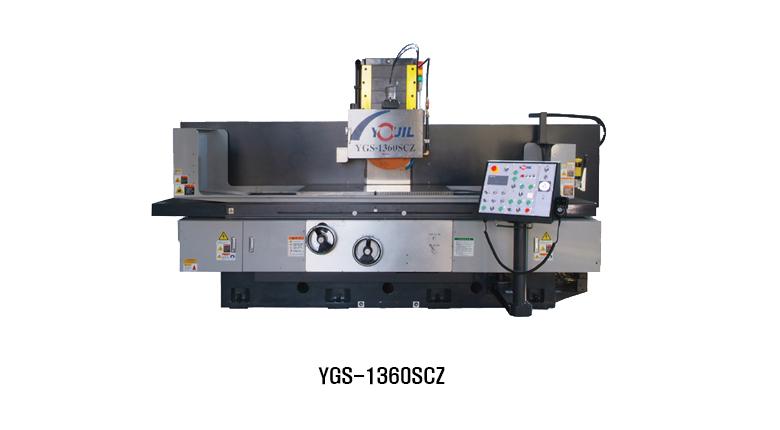

These series,column type surface grinding machines, are featured by widely ranging from 600~800mm of cross working width to 900mm passing the limit of single column mode based on accumulated know-how derived from long experience.
Suitable for wide range of grinding from heavy grinding to precision grinding
Maintenance of high strength due to high-elasticity structure of base,column and table
Convenient grinding thanks to ergonomic design
- Handle intensively arranged on the front of base
- Control panel setting cross travel
- Easy and convenient operation
Specification
|
Item |
unit |
YGS-1670SCZ |
YGS-1360SCZ |
||
|
Capcity |
Electric magnetic chuck |
mm |
1650×700 |
1300×600 |
|
|
Max. distance between table surface and grinding wheel center |
mm |
0~950 |
0~845 |
||
|
Table |
Traverse speed range(per min) |
m/min |
0~25 |
0~25 |
|
|
Cross movement-hand |
Hand feed per revolution |
mm |
5 |
5 |
|
|
Graduation of hand wheel |
mm |
0.025 |
0.025 |
||
|
Cross movement-hydraulic |
Intermittent feed |
mm |
2~15 |
2~15 |
|
|
Continuous feed |
m/min |
0.2~1.0 |
0.2~1.0 |
||
|
Grinding head |
Automatic feed per table stroke |
mm |
0.001~0.03 |
0.001~0.03 |
|
|
Manual down feed |
Hand feed per revolution |
mm |
0.1, 1.0, 2.5 |
0.1, 1.0, 2.5 |
|
|
Graduation of hand wheel |
mm |
0.001, 0.01, 0.025 |
0.001, 0.01, 0.025 |
||
|
Grinding Wheel |
Diameter×Width×Bore |
mm |
Ø510×50×Ø127 |
Ø510×50×Ø127 |
|
|
Speed (50Hz/60Hz) |
r.p.m |
1000/1200 |
1000/1200 |
||
|
Motors |
Grinding wheel spindle |
Kw/p |
15/6 |
7.5/6 |
|
|
Hydraulic pump |
Kw/p |
5.5/4 |
5.5/4 |
||
|
Weight (about) |
kg |
12000 |
7100 |
||
|
Wheel cover model |
|
YGS/CVR-510C |
YGS/CVR-510C |
||
Machine Dimensions
|
Division |
A |
B |
C |
|
YGS-1670SCZ |
5540 |
3020 |
2660 |
|
YGS-1360SCZ |
5800 |
2770 |
2260 |
Working Area
|
Division |
YGS-1670SCZ |
YGS-1360SCZ |
|
a |
50 |
50 |
|
b |
365 |
315 |
|
c |
365 |
315 |
|
d |
700 |
600 |
|
e |
510 |
510 |
|
f |
950 |
845 |
