1. Description
LKGB Cable (LK / LKGB) which was extruded with strong silicone rubber on the conductor and double braided with Glass fiber yarn, varnished with liquid silicones to improve mechanical strength.
2. Application
Widely used as leading wires of generators, motors or other electrical equipments.
Lead wire for heavy electric machine, car and ship etc

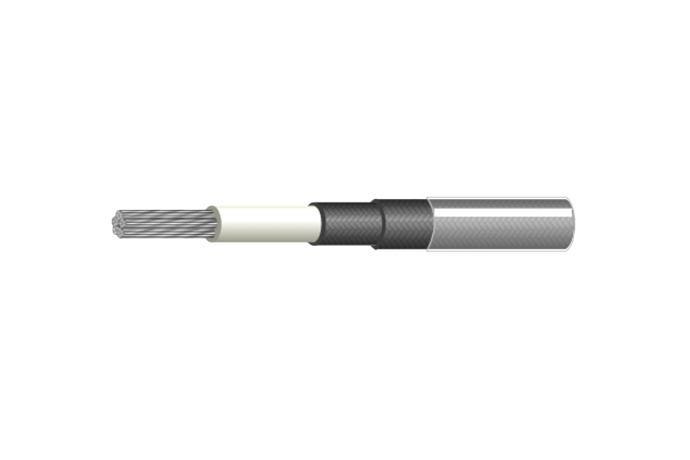

3. Cable Construction
No. | Construction | Material | Type |
1 | Conductor | Tinned Copper | LK / LKGB |
2 | Insulation | Silicone Rubber | LK / LKGB |
3 | Inner Sheath | Glass-Fiber Braiding | LKGB |
4 | Out Sheath | Glass-Fiber Braiding | LKGB |
5 | Coating | Silicone Varnish | LKGB |
4. Specification
Voltage Class | 600V / 1,500V / 3,300V / 6,600V |
Continuous Service temp | -60℃ ~ 180℃ (Max. 200℃) |
Conductor size | 0.75SQ ~ 325SQ available |
