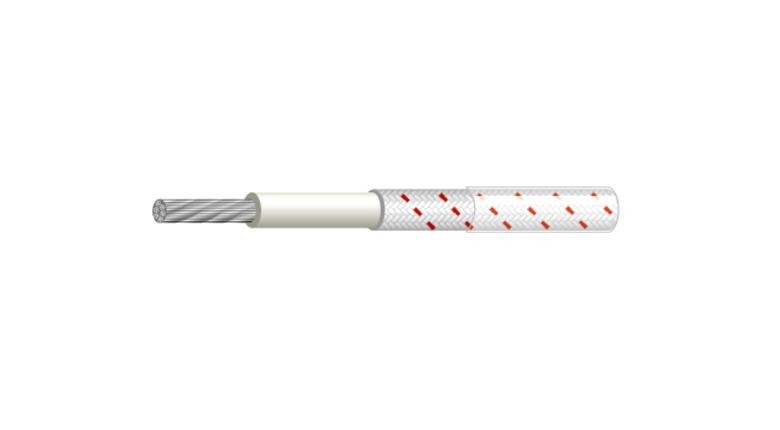

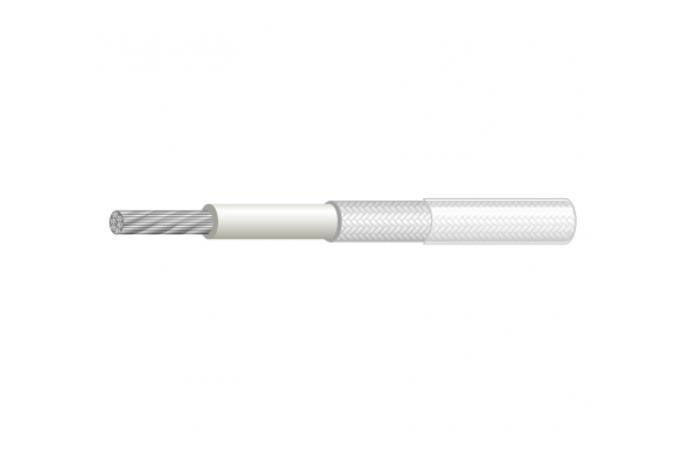

1 - Conductor : Annealed Copper Wire (Tin Plating, Nickel Plating, Silver Plating)
2 - Insulation : Heat Resistance Silicone Rubber
3 - Sheath : Glass Fiber Braided (+Special Vanish Coating)
1. Description
SRG is based on insulated silicone extruding and braided glass fiber with special heat resistance vanish. SRG has been using as a part regarding automobile, heavy electric machine, home appliance and so on.
2. Feature
▶ Physical-chemical
1) Allowable Temperature : -60℃ ~ 200℃
2) Superiority of heat resistance, cold resistance under severe condition, flexibility, electric insulation
3) Possibility the alternation of use according to usage purpose such as high temperature, high voltage
▶ Electrical
1) Rated Voltage : 300, 600V (Depends on UL style and In-company regualation)
2) Test Voltage : 2,000V/min (Depends on UL style and In-company regualation)
3. Approval Standard
▶ UL and CSA approved (File No. E120271, E120347)
▶ AWM 3068/3069/3070/3071/3122/3172/3512
Style | Grade | Conductor (AWG) | Insulation Thickness (mm) | |
Temperature (℃) | Voltage (V) | |||
3068 |
150
| 300 | 16 - 30 | 0.40 |
3069 | 600 | 20 - 26 | 0.80 | |
3070 | 600 | 12 - 18 | 0.80 | |
3071 |
200
| 600 | 14 - 18 | 0.80 |
3122 | 300 | 16 - 26 | 0.40 | |
3172 | 600 | 18 - 26 | 0.80 | |
3512 | 600 | 20 - 450kcmil | 0.76 - 2.42 | |
