1. Description

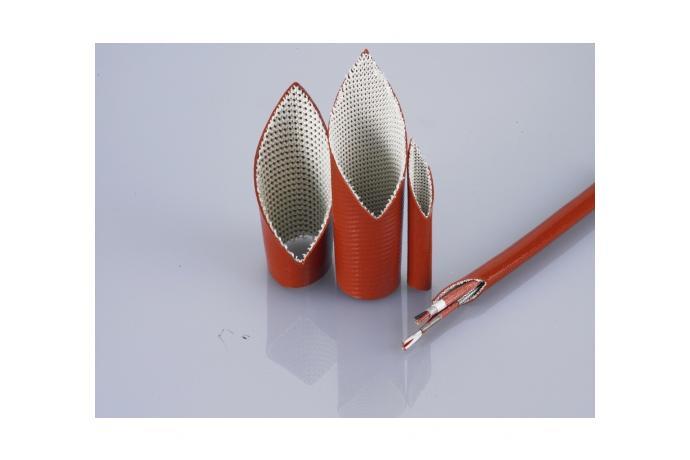

GENICONE TUBE FRHT series consist of special coated silicone rubber to the weaved glass fiber, so it can protect hoses, cables and pipes under severe condition.
2. Feature
1) Superiority for heat resistance
* Continuous workable temperature : -60℃ ~ 260℃
* Max. instantaneous workable temperature : 800℃ (30min), 1100℃ (15min), 1500℃ (1min)
2) Excellance for fire resistance
* Satisfaction to UL VW-1 and IEC 60695 2-10 grade
3) Flexibility and so on
3. Application
1) Steel mill
2) Shipbuilding and Railroad
3) Chemical industries
4) Aerospace indusries
5) Other industries such as heat resistance, fire resistance
4. Production Standard
Model |
Internal Diameter |
Min. thickness |
Model |
Internal Diameter |
Min. thockness |
YC-FRHT-13 |
13mm |
2.0mm |
YC-FRHT-45 |
45mm |
3.0mm |
YC-FRHT-16 |
16mm |
2.0mm |
YC-FRHT-51 |
51mm |
3.0mm |
YC-FRHT-20 |
20mm |
2.0mm |
YC-FRHT-63 |
63mm |
3.0mm |
YC-FRHT-25 |
25mm |
3.0mm |
YC-FRHT-75 |
75mm |
3.0mm |
YC-FRHT-30 |
30mm |
3.0mm |
YC-FRHT-80 |
80mm |
3.0mm |
YC-FRHT-36 |
36mm |
3.0mm |
YC-FRHT-92 |
92mm |
3.0mm |
YC-FRHT-38 |
38mm |
3.0mm |
YC-FRHT-100 |
100mm |
3.0mm |
5. Packaging Unit
Internal Diameter |
Package |
13~20mm 25~30mm 36~51mm over 63mm |
30M 20M 15M 10M |
