1 - Conductor : Annealed Tin-Coated Copper Wire (IEC-60228 Class 5)
2 - Insulation : Fluoro Resin (FEP)
3 - Bedding : Silicone Rubber
4 – Inner Protection : Tinned Copper + Drain Wire
5 – Jacket : Fluoro Resin (ETFE)
1. Description

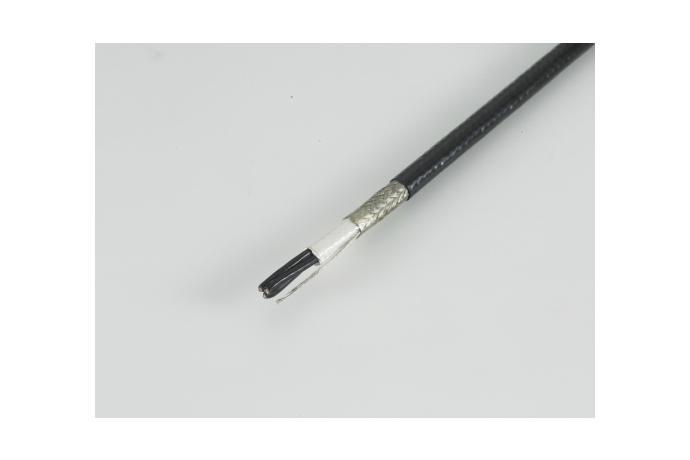

Chemical Resistance/High Performance multi core cable in engine room or other inner part of vessel
2. Certificates (IACS 9 Countries)
ABS (USA) / BV (France) / CCS (China) / DNV (Norway) / GL (Germany) / KR (South Korea) / LR (British) / NK (Japan) / RINA (Italy)
3. Technical Data
Rated Voltage |
300, 500V (JIS / UL / IEC 60228-3 / VDE 0295) |
|
Adapted Standard |
IEC 60092-350 |
Design Guideline |
IEC 60811-2 |
Ozone Resistance |
|
IEC 60332-3 |
Flame retardant Cat. A |
4. Production Standard
Cable Standard |
Bobbin Standard |
Package Unit |
|||||
Model
|
Max. External Diameter |
Internal Diameter |
External Diameter |
Inside Width |
Height |
Thickness |
|
0.75SQ x 2C |
6.6mm∅ |
200mm∅
|
500mm∅
|
380mm
|
150mm |
11.5mm
|
1,000m |
0.75SQ x 3C |
6.9mm∅ |
||||||
0.75SQ x 5C |
8.1mm∅ |
500m |
|||||
0.75SQ x 7C |
8.5mm∅ |
||||||
0.75SQ x 12C |
10.9mm∅ |
260mm∅
|
600mm∅
|
170mm
|
|||
0.75SQ x 16C |
12.1mm∅ |
300m
|
|||||
0.75SQ x 20C |
13.0mm∅ |
||||||
1.0SQ x 2C |
7.1mm∅ |
200mm∅
|
500mm∅
|
380mm
|
150mm
|
11.5mm
|
500m
|
1.0SQ x 3C |
7.4mm∅ |
||||||
1.0SQ x 5C |
8.6mm∅ |
||||||
1.0SQ x 7C |
9.3mm∅ |
||||||
1.5SQ x 2C |
7.7mm∅ |
200mm∅
|
500mm∅
|
380mm
|
150mm
|
11.5mm
|
500m
|
1.5SQ x 3C |
8.1mm∅ |
||||||
1.5SQ x 5C |
9.4mm∅ |
||||||
1.5SQ x 7C |
10.2mm∅ |
260mm∅ |
600mm∅ |
170mm |
|||
2.0SQ x 2C |
8.5mm∅ |
200mm∅
|
500mm∅
|
380mm
|
150mm
|
11.5mm
|
500m
|
2.0SQ x 3C |
8.9mm∅ |
||||||
2.5SQ x 2C |
8.9mm∅ |
200mm∅
|
500mm∅
|
380mm
|
150mm
|
11.5mm
|
500m |
