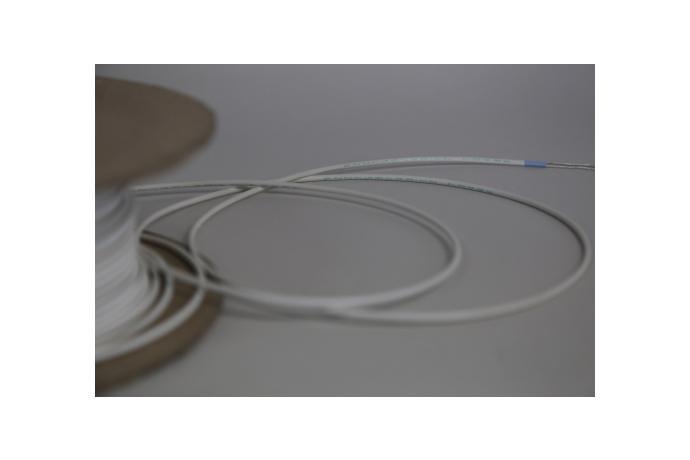

1 - Conductor : Nickel-Plated Copper
2 - Insulation : Fluoropolymer/polyimide tapes
1. Description
As a result of continuous research and development, Young Chang obtained the MIL Certificate in 2012.
MIL wire obtained U.S.A department of State (Registeration : QPL-SIS-22759-25)
Mil wire can adapt to commercial or military airplane, because of superiority of miniaturization, lightening, heat resistance and chemical resistance.
2. Production Standard
Part Number |
AWG size |
Conductor Stranding |
Approx. LBS/MFT |
Max. Resistance (20°C OHMS/MFT) |
Min O.D. (in) |
Max O.D. (in) |
M22759/34-24 |
24 |
19/36 |
2.3 |
26.20 |
0.043 |
0.047 |
M22759/34-22 |
22 |
19/34 |
3.2 |
16.20 |
0.048 |
0.052 |
M22759/34-20 |
20 |
19/32 |
4.7 |
9.88 |
0.056 |
0.060 |
M22759/34-18 |
18 |
19/30 |
7.2 |
6.23 |
0.067 |
0.073 |
M22759/34-16 |
16 |
19/29 |
9.0 |
4.81 |
0.074 |
0.080 |
M22759/34-14 |
14 |
19/27 |
13.8 |
3.06 |
0.091 |
0.097 |
M22759/34-12 |
12 |
37/28 |
20.5 |
2.02 |
0.108 |
0.114 |
M22759/34-10 |
10 |
37/26 |
32.4 |
1.26 |
0.130 |
0.138 |
M22759/34- 8 |
8 |
133/29 |
60.3 |
0.701 |
0.187 |
0.203 |
M22759/34- 6 |
6 |
133/27 |
94.5 |
0.445 |
0.231 |
0.251 |
M22759/34- 4 |
4 |
133/25 |
150.0 |
0.280 |
0.300 |
0.320 |
M22759/34- 2 |
2 |
665/30 |
239.0 |
0.183 |
0.390 |
0.428 |
M22759/34- 1 |
1 |
817/30 |
290.0 |
|
0.429 |
0.461 |
M22759/34-01 |
1/0 |
1045/30 |
377.0 |
|
0.469 |
0.501 |
M22759/34-02 |
2/0 |
1330/30 |
487.0 |
|
0.529 |
0.561 |
