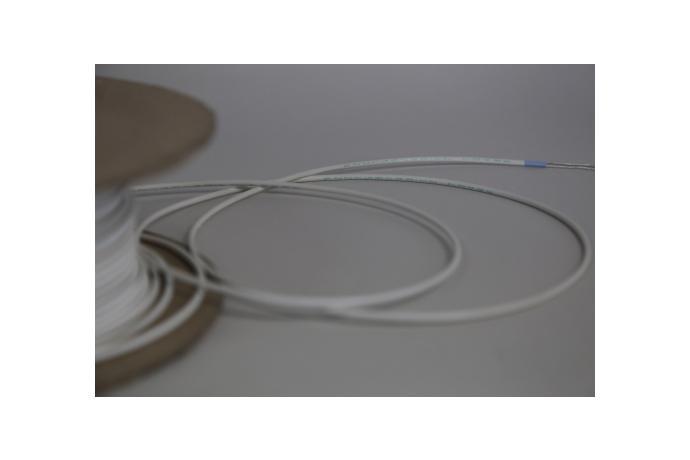

product Image

TOP

Model Name
M22759-82
Series
Wire for Airplane
Data
-
Manufacturer information
provider logo
YOUNG CHANGSpecial cable manufacturer, Thermal resistance wire, Heating cable, Thermal resistance tube, Insulated wire, Wire for aviation
Problem with product info?
Update request
Manufacturer
YOUNG CHANG
Brand
-
SKU
37810
Product Name
Model Name
M22759-82
Size
-
Weight
-
Product Details

1 - Conductor : Nickel-Plated Copper
2 - Insulation : Fluoropolymer/polyimide tapes



1. Description

As a result of continuous research and development, Young Chang obtained the MIL Certificate in 2012.

MIL wire obtained U.S.A department of State (Registeration : QPL-SIS-22759-25)

Mil wire can adapt to commercial or military airplane, because of superiority of miniaturization, lightening, heat resistance and chemical resistance.



2. Production Standard

 Part Number

 AWG size

 Conductor Stranding

 Approx. LBS/MFT

 Min O.D. (in)

 Max O.D. (in)

M22759/82-26

26

19/38

 1.43

 0.030

 0.034

M22759/82-24

24

 19/36

1.93

 0.034

 0.038

M22759/82-22

22

 19/34

2.85

 0.040

 0.043

M22759/82-20

20

19/32

 4.38

0.048

0.051
