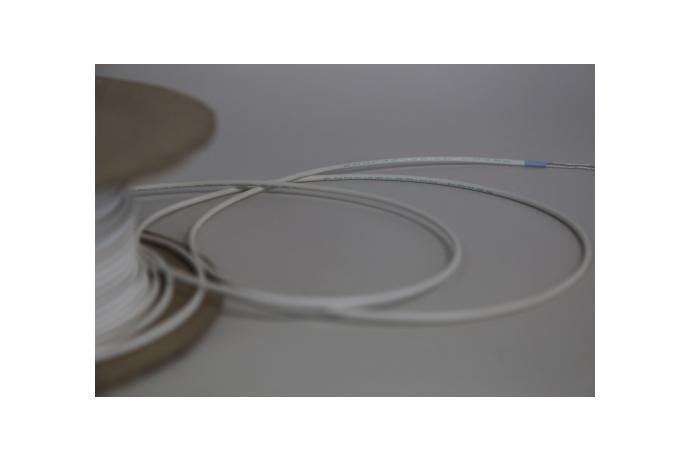

1 - Conductor : Nickel-Plated Copper
2 - Insulation : Fluoropolymer/polyimide tapes
1. Description
As a result of continuous research and development, Young Chang obtained the MIL Certificate in 2012.
MIL wire obtained U.S.A department of State (Registeration : QPL-SIS-22759-25)
Mil wire can adapt to commercial or military airplane, because of superiority of miniaturization, lightening, heat resistance and chemical resistance.
2. Production Standard
Part Number |
AWG size |
Conductor Stranding |
Approx. LBS/MFT |
Min O.D. (in) |
Max O.D. (in) |
M22759/90-26 |
26 |
19/38 |
1.55 |
0.033 |
0.037 |
M22759/90-24 |
24 |
19/36 |
2.15 |
0.038 |
0.042 |
M22759/90-22 |
22 |
19/34 |
3.00 |
0.043 |
0.047 |
M22759/90-20 |
20 |
19/32 |
4.55 |
0.051 |
0.055 |
