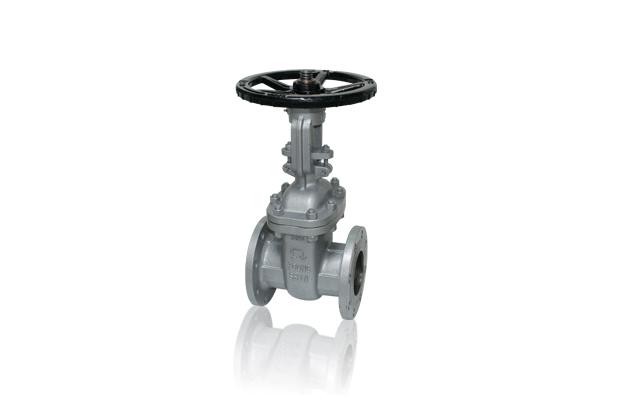

Flanged Out Side Gate Valves (Cast Steel 10K)
Model Name
-
Series
OS & Y Valve
Data
-
Manufacturer information
provider logo
YOUNGSHIN

Flanged inside gate valve, Flanged lift check valve, Flanged glow valve, Flanged swing check valve and more

Problem with product info?
Update request
Manufacturer
YOUNGSHIN
Brand
-
SKU
130881
Product Name
Flanged Out Side Gate Valves (Cast Steel 10K)
Model Name
-
Size
-
Weight
-
Product Details
Applicable fluid Water, Steam, Oil
Working Pressure 10KGf/cm²
Test Pressure Body 21KGf/cm²
Seat 15.4KGf/cm²
Applicable Temperature Max. 220℃





NO PART MATERIAL
1 BODY CAST STEEL (SCPH2)
2 TRIM 13CR
3 STEM STS403, STS410
4 BONNET CAST STEEL (SCPH2)
5 PACKING GLAND SF440A
6 HANDLE WHEEL GCD450
7 BONNET BOLT SM25C





DIMENSION

SIZE L D C g t-f n-Øh D。 H H₁
50 178 155 120 96 16-2 4XØ19 200 320 381
65 190 175 140 116 18-2 4XØ19 200 346 425
80 203 185 150 126 18-2 8XØ19 240 395 489
100 229 210 175 151 18-2 8XØ19 280 436 547
125 254 250 210 182 20-2 8XØ23 320 510 650
150 267 280 240 212 22-2 8XØ23 320 570 730
200 292 330 290 262 22-2 12XØ23 360 710 920
250 330 400 355 324 24-2 12XØ25 400 884 1147
300 356 445 400 368 24-3 16XØ25 450 1023 1334

Unit : mm
