product Image

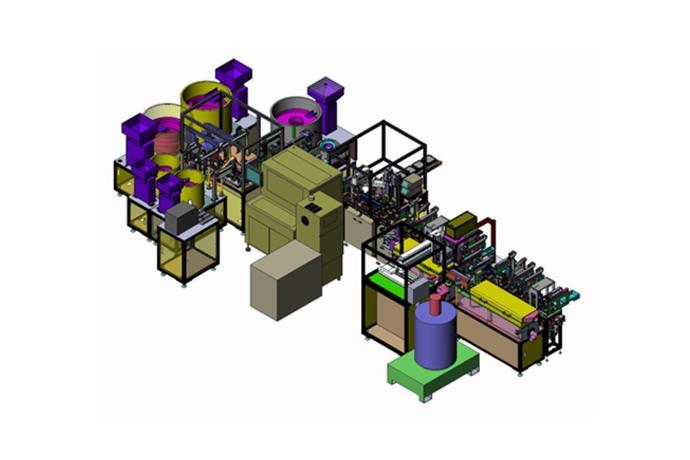

Wheel Unit Assembly & Test Line
Model Name
-
Series
Electro Mechanical Systems
Data
-
Manufacturer information
provider logo
YUJIN ROBOT

Robot specialized manufacturer, Cleaning, Entertainment, Industrial and Educational robot

Problem with product info?
Update request
Manufacturer
YUJIN ROBOT
Brand
-
SKU
24941
Product Name
Wheel Unit Assembly & Test Line
Model Name
-
Size
-
Weight
-
Product Details

자동차 타이어에 조립되는 제품을 생산하는 라인이며, Housing 조립 라인과 Valve 조립 라인으로 구성 되어 있습니다.
Pallet를 이용하는 In-Line 설비 입니다. 전체 라인은 PLC 제어를 하며 공정별 Touch Panel 설치된 HMI에 의해 설비 조작
Data 저장 및 Monitoring이 용이 합니다. 또한 상위 Computer 와의 MES를 통해 생산제품에 대한 생산관리,이력관리,
추적관리 등을 할 수 있습니다.

Process

Housing Loading > Atic Seal 삽입 > PCB 조립 > Battery 조립 > Battery Soldering > AOI > Function Test > Laser Marking Pre-Heating > Potting > Curing > EOL Test > Valve Assembly >Packing

주요 구성
• Parts Feeder
• Router
• Battery Assembly Machine
• Soldering Machine
• AOI
• Laser Marking Machine
• 2 액형 Dispensing Unit
• Curing Oven
• EOL Tester
• Valve Assembly Machine
• Conveyor System
