Manufacturer
ZEUS TECHNO
Brand
-
SKU
28644
Product Name

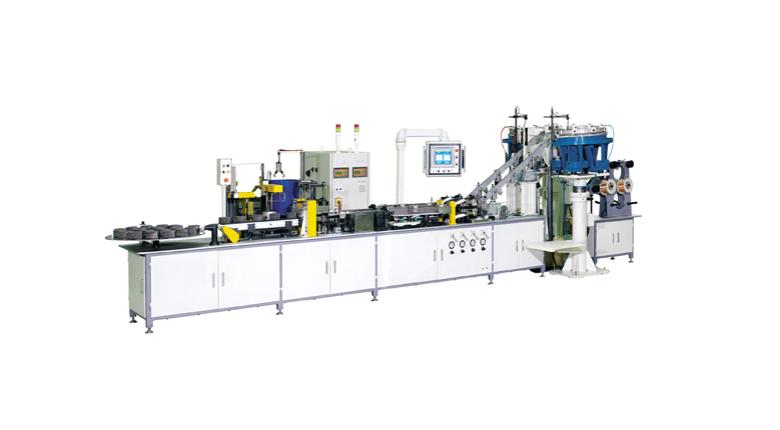

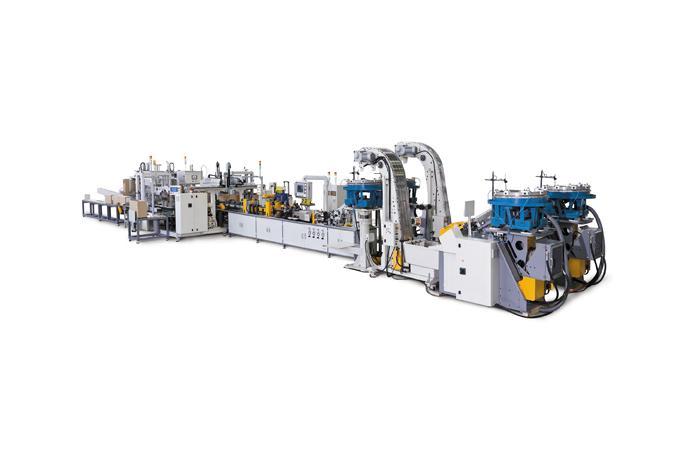

Dual Wire Collator
Model Name
MC-5
Size
-
Weight
-
Product Details
For the most efficient competative production cost of regular wire welded coil nails.
This Dual Lane Collator will lower your cost by producing 5,000 nails per minute. Equipped with dual feeders, welders, cutters, coaters and a single take away conveyor with automatic rubber banding unit.
SPECIFICATION
| Collating Speed | Up to 5,000 Nails per Min. | |
|---|---|---|
| Nail Size | Length | 3/4" to 4"(19~100mm) |
| Diameter | .0625" to .148 "(1.60~3.77mm) | |
| Nail Spec | Angle | 0° to 16° Degree |
| Nails per Coil | 200 to 300 Nails | |
| Electric Power | 50KVA, 3 phase 220V,50~60Hz | |
| Air Consumption | 600 Litter per Min | |
| Electronic Mfg | As Specified by Customer | |
| Pneumatic Mfg | As Specified by Customer | |
| Space Required | 24L x 10W x 6H in Feet (7,200L x 3,000W x 1,800H mm) | |
| Weight |
11,000 Lbs (5,000kg) |
|
SAMPLE PRODUCT
