This product is manufactured by
ZEUS TECHNO
Extruded Plastic Strip Nail Collator
Model Name
MS-7
Data
CATALOG-ZEUS TECHNO-MS-7
Manufacturer information
ZEUS TECHNO
Wire Weld, Plastic Strip, Paper Strip, Rolling Machine, Nail Making Machine
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
ZEUS TECHNO
Brand
-
SKU
28646
Product Name
Extruded Plastic Strip Nail Collator
Model Name
MS-7
Size
-
Weight
-
Product Details

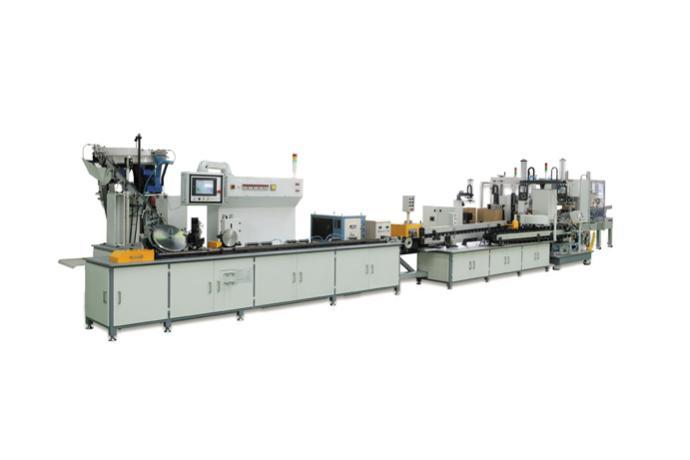

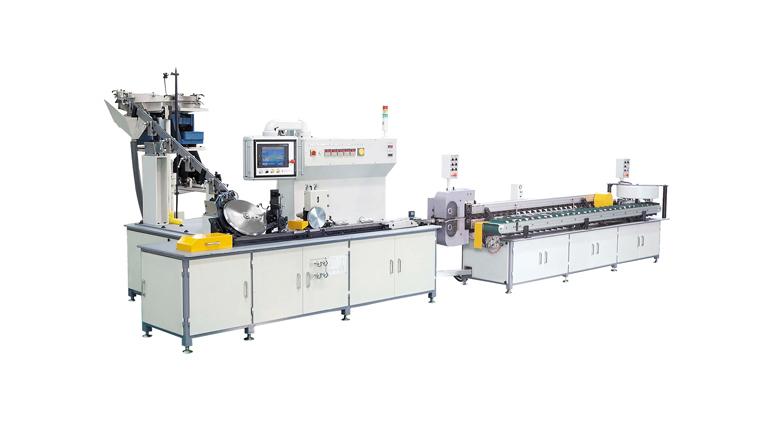

This horizontal double lane belt feeding, injection-molded plastic collator will increase your efficiency and cut down on plastic scrap with its high production speed of 2,500 nails per minute. Equipped with transmitter gear, double lane belt, water-cooled crimping gears, rotary cutter, spray roller coater, and automatic adjustment stacker.
SPECIFICATION
| Collating Speed | Up to 2,500 Nails per Min. | |
|---|---|---|
| Nail Size | Length | 1-3/4"~4"(45~100mm) |
| Diameter | 0.08"~0.16" (2.03~4.1mm) | |
| Strip Spec | Angle | Any Angle |
| Nails per Strip | 20~40 Nails | |
| Electric Power | 45KVA, 3 phase 220V, 50/60Hz | |
| Air Consumption | 450 Litter per Min | |
| Electronic Mfg | As Specified by Customer | |
| Pneumatic Mfg | As Specified by Customer | |
| Space Required | 25L x 9W x 6H in Feet (7,700L x 2,600W x 1,800H in mm) | |
| Weight | 8,800 Lbs (4,000kg) | |
SAMPLE PRODUCT
