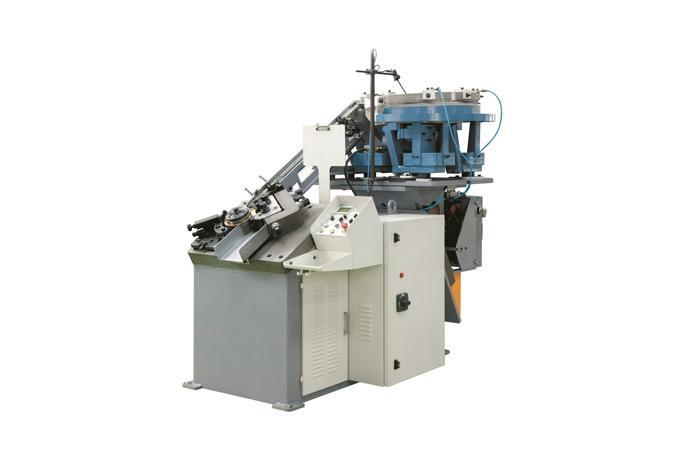

Feeding Planetary Thread & Form Rolling Machine

Feeding Planetary Thread & Form Rolling Machine

Model Name

RT-SL Series

Series

Rolling Machine

View AllView All Series

Data

Manufacturer information

ZEUS TECHNO

Wire Weld, Plastic Strip, Paper Strip, Rolling Machine, Nail Making Machine

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

ZEUS TECHNO

Brand

SKU

28659

Product Name

Feeding Planetary Thread & Form Rolling Machine

Model Name

RT-SL Series

Size

Weight

Product Details

ㆍ40" Vibratory Feeder Bowl, ATAC Drive by Motion Sensor

ㆍNail Inserting by Armed Finger with CAM Drive.!

ㆍFull Feature Vector Drive by-Heavy Duty Spiral Bevel Gear

ㆍCooling apparatus for dies block guarantee extremely long life of dies.

ㆍEasy Setup / Easy Maintenance

SPECITIFICATION

		RT-SL 160	RT-SL 300
Thread Type		Availale Spairal Shank/ Ring Shank	Availale Spairal Shank/ Ring Shank
Prouduction Speed		2,000 ~ 500NPM	500 ~ 200 NPM
Nail Size	Length	75 ~ 160mm	160 ~ 300mm
	Diameter	Ø 1.20 ~ Ø 4.87mm	Ø 1.20 ~ Ø 4.87mm
Bowl Feeder		40"	40"
*Thread Length Range()**		3"(76mm)
Tooling Size		7"/5.5" Χ 3"(178/140~76mm)
Main Motor		15HP(12Kw)
Electric Power		15KVA, 3 Phase/220V/50~60Hz
Space Required		5.9L x 3.9W x 6.6H Feet (1,800L x 1,200W x 2,000H mm)
Weight		4,400 Lbs (2,000 Kg)

CONFIGURATION

1. Feeder Bowl(RF-36A): 36"(Φ900mm), 4magnets, 4spring blocks, 3air nozzles. Neo PWM Vibrationg System.

2. Straight steep down rail: 1,250mm length, 30 degree aligned.

3. Straight nail putting CAM system makes good quality of screw thread.

4. Overall up/down setup system makes easy to adjust height of thread.

5. Fine tuning adjusting bolt unit makes best quality of thread.

6. Full feature vector drive with 15HP main driving motor.

7. Main spindle drive by heavy duty sprial bevel gear.

8. Cooling System for both Gear Box & Die Block along with Oil Cooling Radiator.

* Space required: 5.9Lx3.9Wx5.6H in feet(1,800x1,200x1,700H in mm)

* Weight: approx. 4,400 Lbs(2,000kg)

DETAIL SPECIFICATIONS

Power	220V, 3P, 50/60Hz
Transformer	Primary(380~440V)
Air supply	One 1/2" hose at 6bar
Power consumption	15KVA
Air consumption	200 litter/min
Machine noise	65dBA

PARTS SELECTION

Element	Brand	Orign	Remark
Electrical	MITSUBISHI	JAPAN
Pneumatic	SMC	JAPAN

ZEUS TECHNO

Wire Weld, Plastic Strip, Paper Strip, Rolling Machine, Nail Making Machine

With a history dating back to 1979, when we first started out as a nail manufactuer, Zeus Techno Inc. has grown over the years into the world's best and largest collating machinery manufacturer, playing a leading role in the nail collating industry.Zeus Techno believes it must provide collators to its customers that are the best value for the cost charged, of any company in the world ! We pledge to our customers to continually improve our collators so all our customers will know there are no more technically advanced collators made any where than at Zeus Techno.
