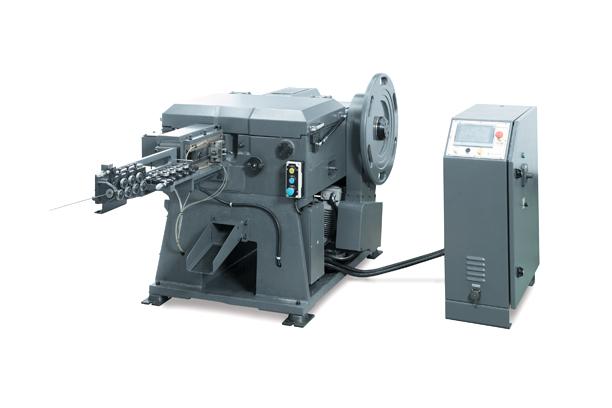

Wire Weld, Plastic Strip, Paper Strip, Rolling Machine, Nail Making Machine
ㆍConsistent High-Speed Production of High-Quality Nails

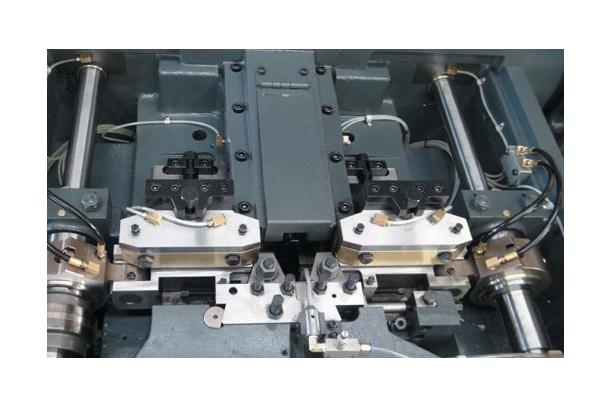

ㆍPrecise Nail Heads by Using Powerful Hammer
ㆍCommon and Low-Cost Spare Parts, Very Low Maintenance Cost
ㆍSound Deadening Cover, Noise Less WITH Safety
ㆍIncludes Nib Remover

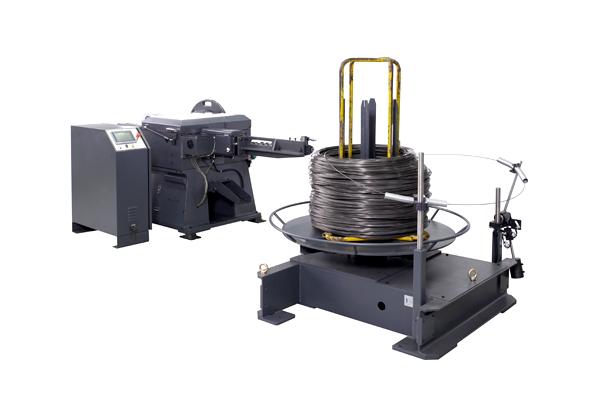

ㆍAvailable Accessories Unit, Powerful Pay-Off
SPECIFICATION
Model | B-3 | |
---|---|---|
Nail | Single Wire (mm, inch) | Double Wire (mm, inch) |
Cutoff Dia.(mm) | 1.75 ~ 3.43mm(.080"~.135") ± 2/100 mm |
1.75 ~ 2.51mm(.069"~.099") ± 1/100 mm |
Nail Length (mm) | 13 ~ 83mm(1/2"~3-3/4") | 13 ~ 70mm(1/2"~2-3/4") |
Output max. (NPM) | Up To 600 NPM | Up To 1000 NPM |
Motor Inverter | 7.5 HP | 7.5 HP |
Machine Weight | 2.5 MT | 2.5 MT |
Floor Space | 2.2 x 1.2m (7 x 4ft) | 2.2 x 1.2m (7 x 4ft) |
