Overview

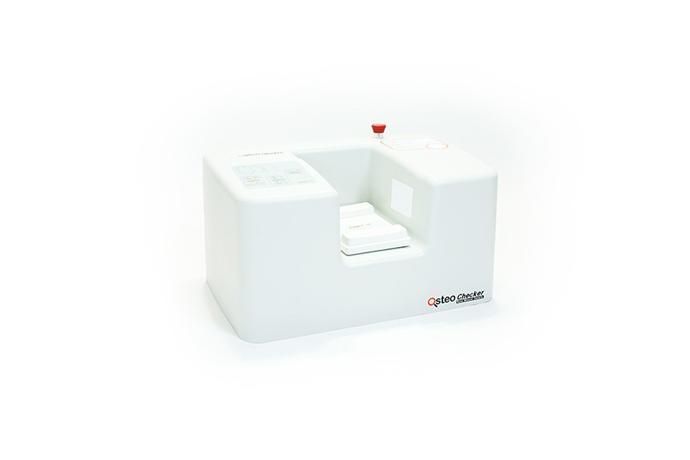

The osteo Checker measure a bone mineral density (BMD) of forearm, calcaneus and grows plate. It is BMD measurement method to show high resolution images after scanning entire measurement area.
Features
X-ray system | Peripheral DXA (Dual energy X-ray Absorptionmetry) |
---|---|
Scan sites | Calcaneus, Foream, Epiphyseal plate |
Weight | 18.5KG / 30KG (Measuring) |
Specification
System | |
---|---|
Scanning method | Cone beam |
Performance | |
X-ray source | Stationary anode X ray tube |
X-ray detector | CCD detector |
Reproducibility | ≤ 5% C.V. |
X-ray characteristic | |
Power | 100 ~ 120 VAC. 50~60 Hz/220 ~ 240 VAC. 50 ~ 60 Hz |
Operating temperature | 10 ~ 35℃ |
Relative humidity | 30 ~ 75 % |
Minimum PC requirements | |
Operating system | Windows XP, Windows 7 |
CPU | Min.2GHz |
Memory | Min.4GB |
Storage | 40GB |
Communication port | USB 1.1 or higher |
Display | 1920 x 1080 pixel |
