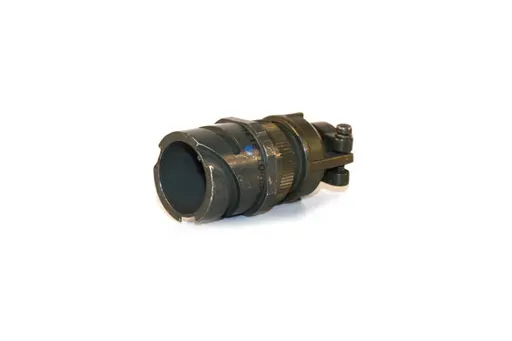

Amphenol ACA-B Series Connectors
모델명
-
자료
Order Guide-Amphenol-Amphenol ACA-B Series Connectors
구매정보
provider logo
암페놀

Interconnect Product Manufacturer, Electrical, Electronic, Fiber Optic Connectors, Coaxial Cable and more

연락처
+1 203-265-8900
이메일
-
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
브랜드
-
SKU
141496
제품명
Amphenol ACA-B Series Connectors
모델명
-
사이즈
-
중량
-
제품 상세 정보

RUGGED REVERSE BAYONET CONNECTORS FOR POWER AND SIGNAL APPLICATIONS

Amphenol ACA-B connectors are designed for commercial and industrial applications requiring a bayonet style coupling device for high power and/or signal. Similar in design to a SAE-AS50151, ACA-B’s are a quick, positive mating type of connector, perfect for markets such as factory automation, robotics, and process control equipment. Amphenol’s ACA-B series has proven itself valuable in the military ground vehicle and alternative energy markets because of its low cost, high reliability design. For full product details on the ACA-B bayonet series, see the specifications below.





Features

  • Commercial and Military
    ACA-B series connectors are made in accordance with German military specification VG95234 and SAE-AS50151 (MIL-DTL-5015). Originally designed for NATO combat vehicles, aircraft, and airborne equipment, these rugged connectors are now in a broad range of demanding commercial applications from trucks to industrial robots.
  • Simple and Fast Mating and Un-Mating
    ACA-B series connectors use a unique “reverse bayonet” coupling system that allows for mating and un-mating with a simple 120˚ rotation without compromising shock, vibration, or moisture resistance. The large, open ramps are easily cleaned of mud or other contaminants. The ramp coupling system eliminates the possibility of cross-threading and thread damage possible with standard SAE-AS50151 (MIL-DTL-5015) threaded connectors. This design is easier to mate in cold weather, tight spaces, or on equipment which must be disassembled frequently.
  • Shock and Vibration Resistant
    ACA-B series connectors are supplied with military-standard resistant sealing and a three-point bayonet coupling nut. The three-point bayonet coupling incorporates a wave spring and washer specified by the rail industry. ACA-B series connectors pass the most stringent tests of shock and vibration performance while maintaining proper continuity and water tightness. Rugged aluminum alloy shell and hardware are light in weight yet highly resistant to damage.
  • Audible, Visual and Tactile Confirmation of Mating
    ACA-B series connectors provide three independent checks that the connector halves are mated. When the coupling nut is fully rotated, the three studs snap into the end of the ramps with a loud “click” (audible). The user can feel the bolts click into the grooves (tactile). Blue dots on the receptacle and coupling nut are aligned when the connector is properly mated (visual).
  • Environmental
    The sealing is not compromised by any of the operating conditions defined in SAE-AS50151 (MIL-DTL-5015) and is completely watertight when mated.
  • Broad Temperature Range
    These connectors will operate in temperatures from -67˚ to +257˚F (-55˚ to +125˚C). High-temperature and zero-halogen insulators are also available. Contact us for ordering information.
  • Wide Range of Wire Gauges and Current-Carrying Capability
    Up to 150 amps with accommodations for wire gauges from size 26 to size 0 AWG.
  • Wide Variety of Contacts
    High-reliability screw machine contacts with silver or gold plating are available in sizes from 20 to 0 to accommodate wire gauges from 26 to 0 AWG. Solder, crimp, PC, co-ax, and thermocouple contacts are available.
  • Intermateable and Intermountable With All VG95234 Connectors
    The standard SAE-AS50151 (MIL-DTL-5015) layouts and dimensions ensure intermateability and intermountability with all connectors made in accordance with VG95234.

All ACA-B connectors are intermountable with standard threaded SAE-AS50151 (MIL-DTL-5015) connectors, often making it possible to upgrade without changing panel cutouts or clearances.





Materials & Finishes

Shell
Aluminum alloy (can be grounded)

Shell Plating
Olive drab chromate coating over cadmium plating, conductive black alloy, black alloy, electroless nickel, green zinc, gray zinc and black anodized

Contacts
Copper alloy

Contact Platings
Hard silver plating or gold plating

Insulator*
Neoprene

Seals
Silicone, Neoprene, or Viton®**



* Optional zero-halogen and high-temperature insulators are available. Contact us for information.

** Viton® is a registered trademark of DuPont DOW Elastomers





Electrical Data

Operating Voltage/Test Voltage according to
SAE-AS50151 (MIL-DTL-5015)H
The indicated values for the operating voltage are limits concerning the electrical function. When the working voltage exceeds 50V, safety precautions must be in accordance with the following standards: VDE 0100, IEC 309-1 or applicable national standards.







Current Rating

*Test amps, multiconductor using Radsok contact



Altitude Voltage Derating* Chart

* No attempt has been made to recommend operating voltages. The designer must determine own operating voltage by the application of a safety factor to the above derating chart to compensate for circuit transients, surges, etc.

† Not corrected for changes in density due to variations in temperature.

Wire Range Sizes
26 AWG to 0 AWG (see contact selection)

Contact Resistance per
SAE-AS50151 (MIL-DTL-5015)H p 3.15








Contact Size

Contact Resistance
Milliohm Max.

Potential Voltage Drop in Millivolts Max.



16/16S

6

21



12

3

20



8

1/(0.44)*

12 (20)*



4

0.5/(0.23)*

10 (18)*



0

0.2/(0.18)*

10 (27)*



*Using Radsok contact



Insulation Resistance
@77˚F (25˚C) > 5,000 Megohms





Mechanical

Operating Temperature
-67˚ to +257˚F (-55˚ to +125˚C) Neoprene

Sealing
33-foot submersible
Sealed when mated. ≈ IP 67 and NEMA 4P

Wire Sealing Range
The connector is designed for individual wire sealing. Sealing of an outer cable jacket on multiconductor cables must be accomplished with an appropriate endbell. Sealing is only guaranteed if wires used are according to MIL-W-5086 or within the listed ranges.









Sealing Range



Contact Size

Inches

MM



16

.064 - .130

1.62 - 3.30



12

.114 - .170

2.89 - 4.31



8

.164 - .255

4.16 - 6.47



4

.272 - .370

6.90 - 9.30



0

.415 - .550

10.50 - 13.97



Insulation Strip Lengths
See Contact Selection Chart

Mating Life
2,000 cycles minimum (AIB/GT) 500 cycles minimum (AIBC/ACA-B)

Salt Spray
Olive drab chromate over cadmium - 500 hours
Non-conductive black alloy - 48 to 200 hours
Conductive black alloy - 48 to 200 hours
Black anodized - 500+ hours
Electroless nickel - 48 hours
Gray Zinc nickel - 500 hours

Heat
Neoprene low-smoke, zero-halogen (LSZH) 257˚F (+125˚C); Viton 392˚F (+200˚C)

Chemical Resistance
Diesel Fuel, JP-4 , Hydraulic Fluid, Gasoline
48-hour intermittent spray for each chemical with no deterioration, followed by Contact Retention (CR), Insulation Resistance (IR), Dielectric Withstanding Voltage tests (DWV)

Corrosion Resistance
Olive Drab Cadmium-Plated 48 hours per SAE-AS50151 (MIL-DTL-5015) (3.17/4.6.13)

Fluid Immersion
Hydraulic Fluid 20 hours per SAE-AS50151 (MIL-DTL-5015) (3.19/4.6.15)
Lubrication Oil 20 hours per SAE-AS50151 (MIL-DTL-5015) (3.19/4.6.15)

Vibration
Per MIL-STD-810C, method 516.2, procedure VIII
1.0 g peak from 5 to 25 Hz
.030” double amplitude from 25 to 57 Hz
5g peak from 57 to 500 Hz

Basic Shock
Per MIL-STD-810C, method 516.2, procedure I pulse at half-sine wave of 30g for 11 seconds

Gun fire Shock
Per MIL-STD-810C, method 516.2, procedure IV pulse at half-sine wave of 100g for 1.5 seconds

Ballistic Shock
Per MIL-STD-810C, method 516.2, procedure IV pulse at half sine wave of 200g for .5 seconds

Contact Type
Solder, crimp, PC, co-ax, or thermocouple. Hard silver or gold plating.

Contact Insertion
From rear with simple hand-tool. Removable, 5 cycles minimum.

Contact Retention
Pin and socket contacts are designed to resist severe vibration and repeated connection and disconnection. Contact retention and separation is tested according to SAE-AS50151 (MIL-DTL-5015)H (4.6.6.1)







Contact Size

Retention Force Min.



16

10



12

15



8

20



4

20



0

25



Number of Circuits
1 to 85

Polarization
Key and keyway plus three point bayonet with optional rotational polarization.

Rear Accessories
Maximum Torque







Size

In./Lb. Max.



10SL

26



14S

44



16

50



16S

50



18

55



20

65



22

85



24

90



28

114



32

120



36

153



40

170












Thermocouple Codes



Material

Color Code

Code



Iron

Black

IR



Constantan

Yellow

CON



Copper alloy

-

Cu



Chromel

White

CH



Alumel

Green

AL



Thermocouple Types:
J = Iron-Constantan
K = Alumel-Chromel
T = Copper-Constantan
E = Chromel-Constantan



Approvals/ Agency Listing
UL File# E115497





Cross-Section





Components
