Ethernet connection system for harsh environments

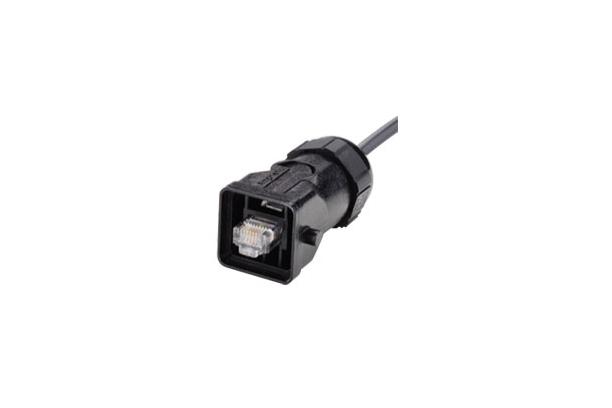

Amphenol RJF EZ series of rectangular ethernet connectors allow for the use of an Ethernet Class D/ CAT5e connection for Ethernet over twisted-pair networks (10 BaseT,100 BaseTX or 1000 BaseT) in industrial and harsh environments. The RJF EZ series are plastic, rectangular connectors with quick lever coupling systems.

These connectors are excellent for harsh conditions – the Amphenol RJF EZ series’ RJStop® connection system (protective composite plug) protects from shock, dust and fluid (IP68 rated). No hazardous on-field cabling and grounding required!





Features

AMPHENOL RJF EZ SERIES MAIN CHARACTERISTICS

• Composite material
• Compliant with IEC 60603-7 variant 13
• Sealed against fluids and dust (IP68)
• Shock, vibration and traction-resistant
• No-cabling operation in-field and no tools required
• Quick lever coupling
• RJ45 cordset retention in the plug: 70 N in the axis
• Mating cycles: 500 min.
• Compatible with cable diameter 0.216 in. (5.5 mm) to 0.275 in. (7.0 mm)



AMPHENOL RJF EZ SERIES ENVIRONMENTAL PROTECTION

• Sealing: IP68
• Salt Spray > 1000-hour
• Fire retardant/low smoke: UL94 VO and NFF 16102, DIN 5510-2
• Thermal shock: 5 cycles at -40°F to +212°F (-40°C to +100°C)
• Operating temperature: -40°F to +185°F (-40°C to +85°C)



AMPHENOL RJF EZ SERIES DATA TRANSMISSION

• 10 Base-T, 100 Base-TX and 1000 Base-T networks
• CAT5e per TIA/EIA 568B and Class D per ISO/IEC 11801
