TRI-START THREAD COUPLING WITH ANTI-DECOUPLING DEVICE

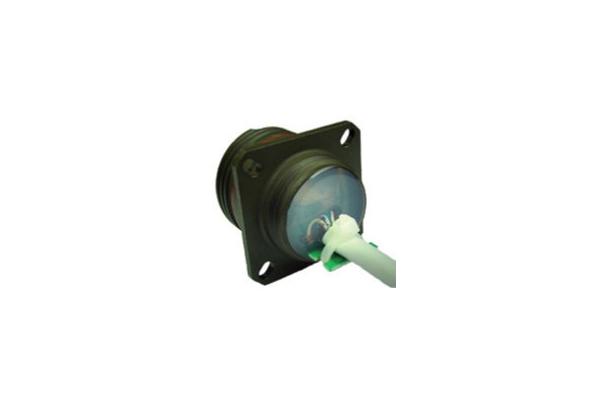

Amphenol RJF TV series connectors allow for the use of an Ethernet Class D/ CAT5e connection for Ethernet over twisted-pair networks in harsh environments. The Amphenol RJF TV series are metal circular connectors that use a Tri-Start Thread coupling mechanism (MIL-DTL-38999 series III-type) with anti-decoupling device. These connectors are excellent for harsh conditions – the Amphenol RJF TV series’ RJStop® connection system protects from shock, dust and fluid. RoHS options are available for Amphenol RJF TV series connectors. No hazardous on-field cabling and grounding required!
Features
AMPHENOL RJFTV SERIES MAIN CHARACTERISTICS
- Sealed against fluids and dusts (IP68)
- Shock, vibration and traction-resistant
- No cabling operation in-field and no tools required
- Mechanical coding / polarization (4 positions)
- Improved EMI-protection
- Tri-Start thread coupling mechanism (MIL-DTL-38999 series III-type) with anti-decoupling device
- Robust metallic shells
- RJ45 cordset retention in the plug: 100 N in the axis
- Mating cycles: 500 min.
- Compatible with cable diameters from 0.236 in. (6 mm) to 0.512 in. (13.0 mm)
AMPHENOL RJFTV SERIES ENVIRONMENTAL PROTECTION
- Sealing: IP68
- Salt Spray: 48-hour with aluminum shell - nickel-plating > 500-hour with aluminum shell - olive drab cadmium plating; 1000-hour with marine bronze shell
- Fire-retardant/low-smoke: UL94 V0 and NF F 16 101 & 16 102
- Vibrations: 10 – 500 Hz, 10 g, 3 axes: no discontinuity > 10 nanos.
- Compounded versions tested per NAS 1599 (5-3000 Hz, 20g, 12h)
- Shocks: IK06; weight of 250 g drop from 40 cm [15.75 in] onto connectors (mated pair)
- Humidity: 21 days, 109.4°F (43°C), 98% humidity
- Thermal shock: 5 cycles at -40°F to +212°F (-40°C to +100°C)
- Operating temperature: -40°F to +185°F (-40°C to +85°C)
AMPHENOL RJFTV SERIES DATA TRANSMISSION
- 10 Base-T, 100 Base-TX and 1000 Base-T networks
- CAT5e per TIA/EIA 568B and Class D per ISO/IEC 11801
- CAT6 per TIA/EIA 568 and Class E per ISO 11801
AMPHENOL RJFTV SERIES - WITH 360° EMI BACKSHELLS
RJFTV series receptacles and plugs with EMI backshells provide a solution with 360-degree shielding offering similar protection as the standard MIL-DTL-38999 series III connectors. With those solutions, we recommend using our reinforced and double-shielded CAT5e cable.
Tech Specs
