TWO USER-DEFINED POLARIZATION POSSIBILITIES FOR USB-B 2.0

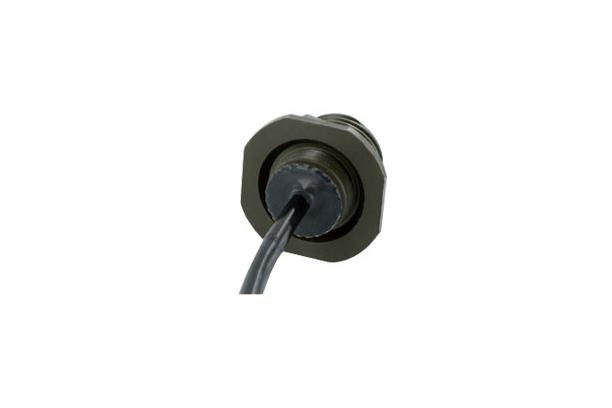

Amphenol USBBFTV (USB-B) series RF field connectors allow for the use of a USB-B 2.0 data connection in harsh environments over twisted-pair networks (Amphenol USBBFTV Series RJ Field Connectors). The USBBFTV series RJ Field connectors are metal circular connectors that use a Tri-Start Thread coupling mechanism (MIL-DTL-38999 series III-type) with anti-decoupling device. The USBBFTV series allows for two mechanical coding/polarization possibilities to be defined by the user.

These connectors are excellent for harsh conditions, , in robotics, military data hubs, special machines, welding machines, communications, CNC, motion control and diagnostics applications. The USBBFTV Series of connectors also support data transmission rates up to 480 Mb/s for high speeds.

The Amphenol USBBFTV (USB-B) series’ RJStop® connection system protects from shock, dust and fluid (IP68 Rating). No hazardous on-field cabling and grounding required!





Features

AMPHENOL USBBFTV SERIES MAIN CHARACTERISTICS

• Sealed against fluids and dust (IP68)
• Shock, vibration and traction-resistant
• No cabling operation in-field and no tools required
• Improved EMI-protection
• Tri-Start thread coupling mechanism (MIL-DTL-38999 series III-type) with anti-decoupling device
• 2 mechanical coding / polarization possibilities by the user (receptacle insert rotation)
• USBF TV plug retention in the receptacle: 100 N in the axis
• Mating cycles: 500 to 1500



AMPHENOL USBBFTV SERIES ENVIRONMENTAL PROTECTION

• Sealing (when mated): IP68 (Temporary immersion)
• Salt Spray: 48-hour with nickel-plating > 500-hour with olive drab cadmium
• Fire-retardant / low-smoke: UL94 V0 and NF F 16 101 & 16 102
• Vibrations: 10 – 500 Hz, 10 g, 3 axes: no discontinuity > 1 micros
• Shocks: IK06; weight of 250 g drop from 40 cm [15.75 in] onto connectors (mated pair)
• Humidity: 21 days, 109.4°F (43°C), 98% humidity
• Temperature Range: -40°F to +185°F (-40°C to +85°C)



AMPHENOL USBBFTV SERIES DATA TRANSMISSION

• USB Specification 2.0
• Data Rate: Up to 480 Mb/s for high-speed
