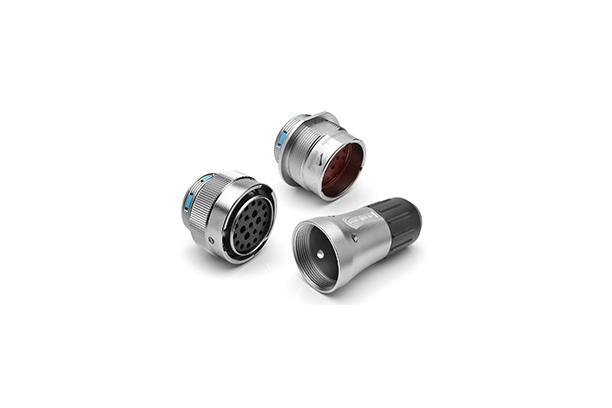

Amphenol Sine Systems DuraMate™ AHDM Bayonet Connectors
모델명
-
사이즈
-
중량
-
제품 상세 정보

QUICK-CONNECT BAYONET LOCKING SYSTEM

The Amphenol Sine Systems DuraMate™ AHDM Series connectors are an IP68/69K rated (mated), environmentally-sealed, multi-pin, heavy duty, metal (AHDM), circular connector that contains an economical, quick-connect, bayonet locking system manufactured to withstand the challenges and complexities of harsh environment off-road applications.. Browse our extensive selection of Amphenol Sine Systems DuraMate™ AHDM connectors today.

Features and Benefits

  • Size 18 with 6 insert arrangements 2, 6, 8, 14, 20 and 21
  • Size 24 with 13 insert arrangements 7(x2), 9, 16, 18, 19, 21, 23, 27, 29, 31, 35 and 47
  • 3 key-way bayonet design ensures proper mating of connectors
  • High density signal and mixed power insert configurations
  • Operating temperature range: -55°C to +125°C
  • High current configurations incorporating revolutionary RADSOK® contacts
  • High strength impact resistant & lightweight thermoplastic or zinc-alloy metal housings
  • Low insertion force stamped terminals offer improved manufacturing efficiencies
  • Standard WTA (Wide Thread Adapter) provides maximum access to rear grommet and improved serviceability
  • Environmentally-sealed and engineered rapid and secure mating system achieves IP68/IP69K protection (in mated condition) from ingress of dust, water, mud and other contaminants and is vibration resistant
  • Sealing features consisting of durable high temperature silicone provide barrier from lubricating oils, hydraulic fluids and fossil fuels
  • Backshells maintain a compression-fit design to resist maximum pull-out forces and facilitate strain-relief for jacketed cable ranges
  • Utilizes A Series™ standard contact system (Stamped & Formed or Machined)Wire en
  • try sealing available in three separate ranges for discrete wire applications
  • Applications: Harsh Environment and Off-Road applications
