SUITABLE FOR A WIDE RANGE OF INDUSTRIAL APPLICATIONS

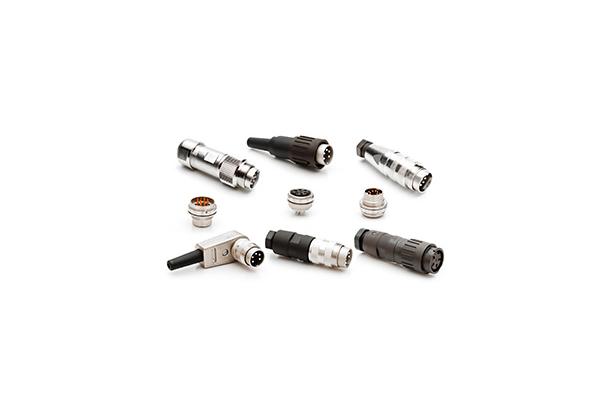

Amphenol C091 (M16 Size) circular DIN connectors are available with a threaded or bayonet locking feature offering environmental protection from IP40 TO IP69K when mated. The compact design provides insert layouts from 2-14 positions, excellent EMI shielding capacity ensuring highest integrity for power and signal connections. The modular structure of the Amphenol C091 series enables a broad field of industrial and commercial applications in diverse temperature ranges and many types for 4G/5G mobile radio networks, establishing the Amphenol C091 (M16) series as the recognized industry standard.





Features

• Available with crimp solder or PCB terminals
• Internal strain relief
• Ability to rewire
• Cable housing straight or right-angled
• UL registered file #E63093
• Front or rear mounting receptacles
• EMI-shielded, fully-mated on A&D types
• One cable housing for cables 6 to 8mm
