General Description
The CA-IS372x devices are high-performance dual-channel digital isolators with up to 3.75kVRMS (narrow-body package) and 5kVRMS (wide-body package) isolation ratings and ultra-fast data rates. The CA-IS372x devices provide high electromagnetic immunity and low emissions at low power consumption while isolating CMOS digital I/O. Each isolation channel has a logic input and output buffer separated by a capacitive silicon dioxide (SiO2) insulation barrier, and each channel input is integrated Schmitt trigger to provide excellent noise immunity.
The CA-IS3720 features two channels transferring digital signals in one direction for applications such as isolated digital I/O. The CA-IS3721/CA-IS3722 devices have 2 channels with 1 channel in each direction, making them ideal for isolating the Tx and Rx lines of a transceiver, such as RS485, CAN, etc. communication. When the input is either not powered or is open-circuit, the default output is low for devices with the suffix L and high for devices with the suffix H.
| Part Number | Series Name | Product Status | Integrate isolated power supply
|
Number of channels
|
Number of reversed channels
|
Isolation Voltage (Vrms) |
CMTI (kV/μS) |
Surge Rating (kVpk) |
ESD Rating (two sides,V) |
Data rate (bps) |
Operating Voltage Range (V) |
Output Mode
|
Default output
|
Operating current per channel (1Mbps,mA,typ) |
Temperature Range (℃) |
Package
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CA-IS3720HS | Dual channel standard digital isolators |  |

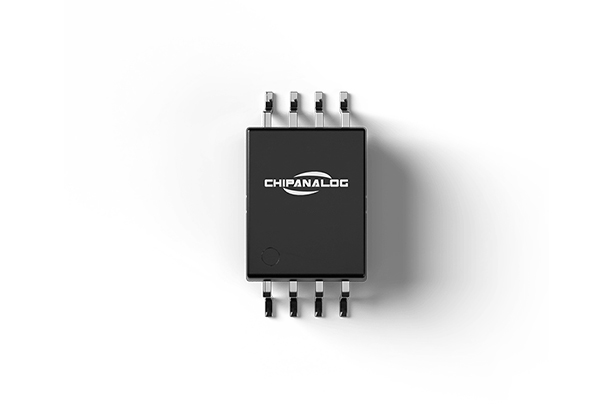

N | 2 | 0 | 3750 | 150 | 8 | 6000 | DC-150M | 2.5-5.5 | Push-pull | High | 1.5 | -40~125 | SOIC8(S) |
| CA-IS3721HS | Dual channel standard digital isolators | |
N | 2 | 1 | 3750 | 150 | 8 | 6000 | DC-150M | 2.5-5.5 | Push-pull | High | 1.5 | -40~125 | SOIC8(S) |
| CA-IS3722HS | Dual channel standard digital isolators | |
N | 2 | 1 | 3750 | 150 | 8 | 6000 | DC-150M | 2.5-5.5 | Push-pull | High | 1.5 | -40~125 | SOIC8(S) |
| CA-IS3720LS | Dual channel standard digital isolators | |
N | 2 | 0 | 3750 | 150 | 8 | 6000 | DC-150M | 2.5-5.5 | Push-pull | Low | 1.5 | -40~125 | SOIC8(S) |
| CA-IS3721LS | Dual channel standard digital isolators | |
N | 2 | 1 | 3750 | 150 | 8 | 6000 | DC-150M | 2.5-5.5 | Push-pull | Low | 1.5 | -40~125 | SOIC8(S) |
| CA-IS3722LS | Dual channel standard digital isolators | |
N | 2 | 1 | 3750 | 150 | 8 | 6000 | DC-150M | 2.5-5.5 | Push-pull | Low | 1.5 | -40~125 | SOIC8(S) |
| CA-IS3720HG | Dual channel standard digital isolators | |
N | 2 | 0 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | High | 1.5 | -40~125 | SOIC8-WB(G) |
| CA-IS3721HG | Dual channel standard digital isolators | |
N | 2 | 1 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | High | 1.5 | -40~125 | SOIC8-WB(G) |
| CA-IS3722HG | Dual channel standard digital isolators | |
N | 2 | 1 | 5000 | 150 | 10 | 6000 | DC-150M | 5.5-27 | Push-pull | High | 1.5 | -40~125 | SOIC8-WB(G) |
| CA-IS3720LG | Dual channel standard digital isolators | |
N | 2 | 0 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | Low | 1.5 | -40~125 | SOIC8-WB(G) |
| CA-IS3721LG | Dual channel standard digital isolators | |
N | 2 | 1 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | Low | 1.5 | -40~125 | SOIC8-WB(G) |
| CA-IS3722LG | Dual channel standard digital isolators | |
N | 2 | 1 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | Low | 1.5 | -40~125 | SOIC8-WB(G) |
| CA-IS3720HW | Dual channel standard digital isolators | |

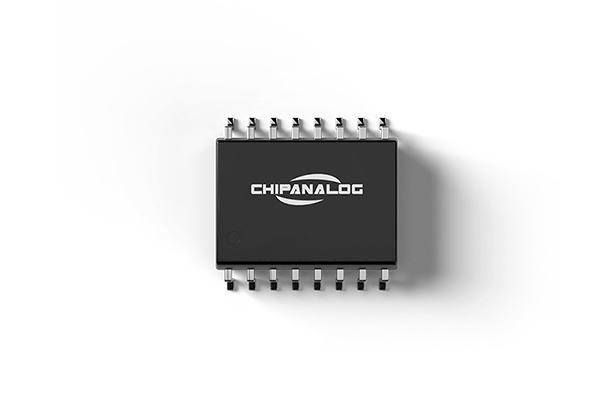

N | 2 | 0 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | High | 1.5 | -40~125 | SOIC16-WB(W) |
| CA-IS3721HW | Dual channel standard digital isolators | |
N | 2 | 1 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | High | 1.5 | -40~125 | SOIC16-WB(W) |
| CA-IS3722HW | Dual channel standard digital isolators | |
N | 2 | 1 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | High | 1.5 | -40~125 | SOIC16-WB(W) |
| CA-IS3720LW | Dual channel standard digital isolators | |
N | 2 | 0 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | Low | 1.5 | -40~125 | SOIC16-WB(W) |
| CA-IS3721LW | Dual channel standard digital isolators | |
N | 2 | 1 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | Low | 1.5 | -40~125 | SOIC16-WB(W) |
| CA-IS3722LW | Dual channel standard digital isolators | |
N | 2 | 1 | 5000 | 150 | 10 | 6000 | DC-150M | 2.5-5.5 | Push-pull | Low | 1.5 | -40~125 | SOIC16-WB(W) |
