• Standard metric thread available : M 150 - WLL: 125t
• Safety factor 5:1
• Swiveling under load
• 360° rotation - 180° swivel
• Complies with the Machinery Directive 2006/42/CE
• Manufactured in compliance with the EN 1677-1 norm
• Individual traceability number

Description

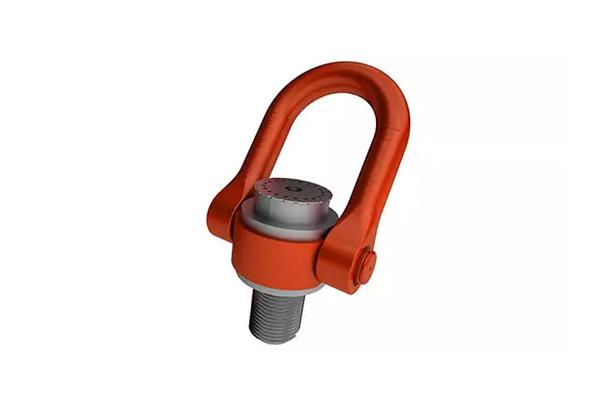

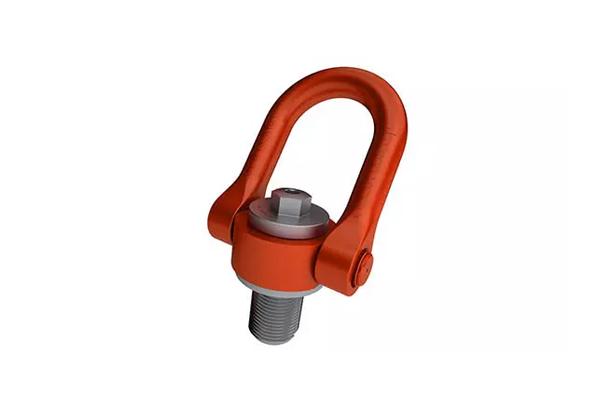

The universal lifting ring GIGA.DSS is a double swivel ring for lifting loads up to 125 tons in one single attachment point. It is composed of a GRADUP lifting ring designed for rotations under load. Its double swivel ensures perfect alignment with the sling. The lifting ring can swivel 180° but has a rotating range of 360°. It can be used for any lifting configuration (straight lift, with angle, tilting, rotating).

The universal lifting ring GIGA.DSS is approved for all lifting configurations from 0° to 90°, designed for use in a temperature range from -20°c to +200°c, and carries various markings, including CE, WLL, and tightening torque. It is manufactured in compliance with the REACH regulation.
