• Long bolt available and produced in a very short time
• Metric threads available : M24 à M64 - L1=300mm à 500mm
• Swiveling under load
• 360° rotation - 180° swivel
• Safety factor 4:1 and 5:1
• Complies with the Machinery Directive 2006/42/CE
• Manufactured in compliance with the EN 1677-1 norm
• Individual traceability number

Description

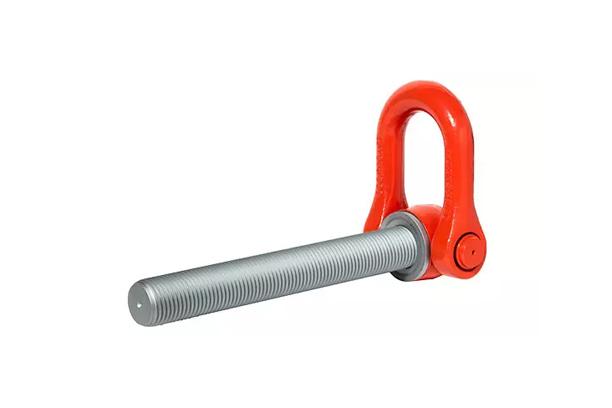

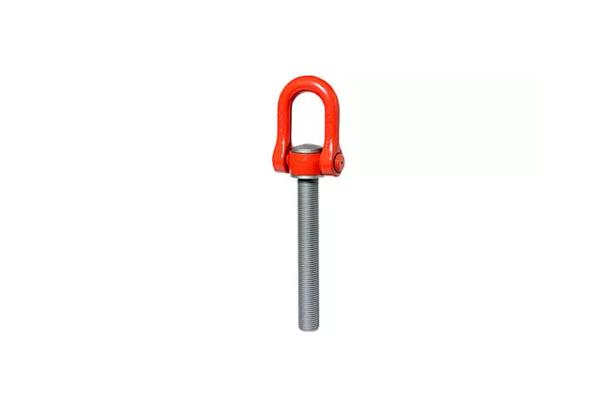

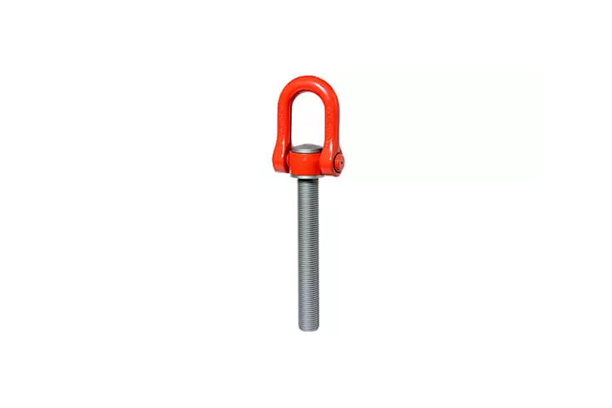

The universal lifting ring DSS with a long bolt is a double swivel ring. It is composed of a GRADUP lifting ring designed for rotations under load. Its double swivel ensures perfect alignment with the sling. The lifting ring can swivel 180° but has a rotating range of 360°. It can be used for any lifting configuration (straight lift, with angle, tilting, rotating).

The universal lifting ring DSS is approved for all lifting configurations from 0° to 90°, designed for use in a temperature range from -20°c to +200°c and carries various markings, including CE, WLL, and tightening torque. It is manufactured in compliance with the REACH regulation and is also available as a female and stainless-steel, quick lift, and welding version.
