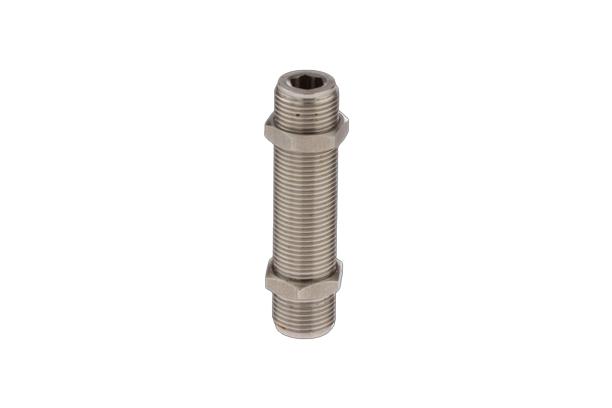

BULKHEADS – SERIES P

Explosion proof bulkheads suitable for hazardous area Zone 1 & Zone 21 & mines

Ex db / Ex eb / Ex tb – IP64

The bulkheads series P give protection against dangerous gas and dust. They allow a gas or a liquid passage from inside to outside explosion proof enclosure guaranteeing flame’s lamination, thanks to an internal calibrated insert with a suitable length for this purpose.

Made in Stainless Steel AISI 316L material, they are recomended for tropical areas with high grade of humidity and high temperature leap.



Features

• Type of protection: Ex db / Ex eb / Ex tb
• Degree of protection: IP64
• Certified for:
  • Gas group IIB+H2 or IIC
  • Dust group IIIC
  • Mines group I M2
• Max range ambient temperature: -60°C ÷ +60°C
• Material used: Stainless Steel AISI 316L
• ISO 262 Threads: from M12x1.5 to M25x1.5
• Weight: 25 g up to 147 g
