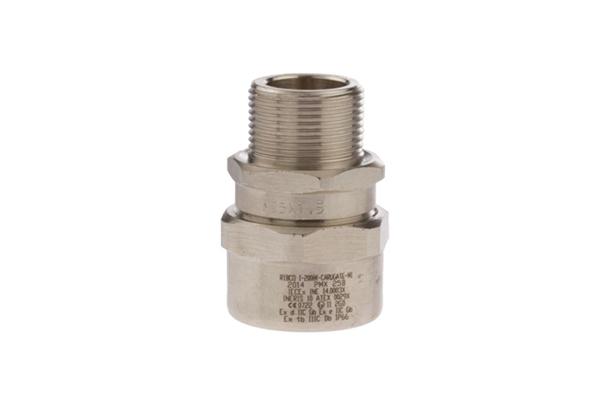

SEALING CABLE GLANDS FOR UNARMOURED CABLES – SERIES PMX
Cable glands for not armoured cable suitable for hazardous area Zone 1 & Zone 21

Ex db / Ex eb / Ex tb – IP66

Cable glands series PMX are explosion proof barrier cable gland single compression with male thread suitable for all type of unarmoured cable.

Features

• Type of protection: Ex db / Ex eb/ Ex tb
• Degree of protection: IP66
• Certified for:
  • Gas group IIC
  • Dust group IIIC
• Max range ambient temperature:
  • -40 °C ÷ +100 °C (with EPDM rings)
  • -60 °C ÷ +180 °C  (with Silicon rings)
• Material used: Nickel plated Brass
• Entries Threading: NPT ANSI B1.20 (N) or Metric ISO 262 (M)
• Unarmoured cable clamping diameter: from 4 mm up to 45 mm
