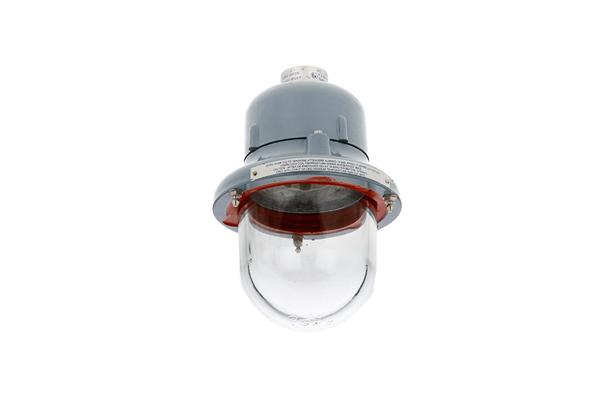

LIGHTING FIXTURES – SERIES EV
Lighting fixtures for hazardous area Zone 1 & Zone 21

Ex db / tb – IP65

Lighting fixtures series EV are suitable for incandescent, halogen, fluorescent, LED, multiLED and flash lamps.

The glass globe, made of tempered borosilicate, is attached to a ceramic lampholder.

External screws are made of Stainless Steel AISI 304.



Features

• Type of protection: Ex db / Ex tb
• Degree of protection: IP65
• Certified for:
  • Gas group IIC
  • Dust group IIIC
• Max range ambient temperature: -20°C ÷ +60°C
• Material used: Aluminum light alloy
• Entries Threading: EN 10226 (Gk)
• Voltage: 230 V AC
• Weight: 1.6 Kg up to 4.3 Kg
