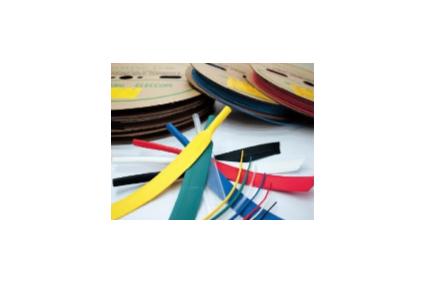

| SHRINK RATIO | More than 50% |
| OPERATING TEMP. | 125℃, 600V |
| MATERIALS | Flexible flame retardant polyolefin and high thermal endurance |
| COLOR | All colors are available |
| APPLICATION | Wire harness, Transformer Switcher |
| RECOGNITION & CERTIFICATION | UL 224 E120268 |
| ORDERING ON REQUEST | Halogen free polyolefin, High shrinkage tube Thinner Wall tube(300V) |
| MARKING | |
E120268 | |
XLPO 600V 125℃ VW-1 DC-125 ##mm DAE CHANG -H/F-Test and Performance Data
Properties | Condition | Data |
Tensile Strength | | Over 1.20kgf/mm²(1.50kgf/mm²) |
Elongation | | Over 350% |
Hardness | ISO 868 | 45~60D |
Deformation | 125℃ X 1hrs | less than 25% |
Heat Shock | 136℃ X 1hrs | no crack |
Cold bend | -10℃ X 1hrs | no crack |
Non-flammability | VW―1 | Passed |
After aging | 158℃(175℃) X 168hrs | |
Tensile strength | | more than 80% of the original |
Elongation | | more than 300% |
Dielectric Strength | | more than 2.5kV |
Volume resistivity | | 1 X 10Ω·cm |
Corrosion | 158℃ X 168hrs | passed |
Copper Stability | | passed |
In oil bath | | |
Tensile strength | | more than 1.4kgf/mm² |
Elongation | | more than 300% |
Standard Size
Normal Size | As Supplied(mm) | After Recovered(mm) | ||
Inside Diameter | Wall Thickness | Inside Diameter. Max | Wall Thickness. Min | |
0.8mm | 0.9±0.3 | 0.17±0.05 | 0.50 | 0.28±0.05 |
1.0mm | 1.3±0.3 | 0.17±0.05 | 0.60 | 0.28±0.05 |
1.2mm | 1.5±0.3 | 0.17±0.05 | 0.65 | 0.30±0.05 |
1.5mm | 1.8±0.3 | 0.17±0.05 | 0.80 | 0.30±0.05 |
2.0mm | 2.4±0.3 | 0.17±0.05 | 1.0 | 0.35±0.05 |
2.5mm | 2.9±0.3 | 0.17±0.05 | 1.25 | 0.38±0.05 |
3.0mm | 3.4±0.4 | 0.22±0.05 | 1.5 | 0.38±0.07 |
3.5mm | 3.8±0.4 | 0.22±0.05 | 1.75 | 0.40±0.07 |
4.0mm | 4.4±0.4 | 0.22±0.05 | 2.0 | 0.45±0.07 |
5.0mm | 5.5±0.4 | 0.22±0.05 | 2.5 | 0.47±0.10 |
6.0mm | 6.5±0.4 | 0.24±0.05 | 3.0 | 0.55±0.10 |
7.0mm | 7.5±0.4 | 0.30±0.05 | 3.5 | 0.55±0.10 |
8.0mm | 8.5±0.5 | 0.30±0.05 | 4.0 | 0.60±0.10 |
9.0mm | 9.5±0.5 | 0.32±0.05 | 4.5 | 0.60±0.10 |
10.0mm | 10.5±0.5 | 0.32±0.05 | 5.0 | 0.60±0.10 |
11.0mm | 11.5±0.5 | 0.32±0.05 | 5.5 | 0.60±0.10 |
12.0mm | 12.5±0.5 | 0.32±0.05 | 6.0 | 0.65±0.10 |
13.0mm | 13.5±0.5 | 0.35±0.05 | 6.5 | 0.65±0.10 |
14.0mm | 14.5±0.5 | 0.35±0.05 | 7.0 | 0.65±0.10 |
15.0mm | 15.5±0.6 | 0.38±0.05 | 7.5 | 0.75±0.10 |
16.0mm | 16.5±0.6 | 0.38±0.05 | 8.0 | 0.75±0.10 |
18.0mm | 18.5±0.6 | 0.43±0.05 | 9.0 | 0.80±0.18 |
20.0mm | 20.6±0.7 | 0.43±0.05 | 10.0 | 0.8±0.18 |
22.0mm | 22.6±0.7 | 0.48±0.05 | 11.0 | 0.8±0.18 |
25.0mm | 25.6±0.7 | 0.48±0.05 | 12.5 | 0.95±0.18 |
28.0mm | 29.0±0.7 | 0.48±0.05 | 14.0 | 0.95±0.18 |
30.0mm | 31.0±0.7 | 0.55±0.05 | 15.0 | 0.95±0.18 |
35.0mm | 36.0±1.0 | 0.55±0.05 | 17.0 | 1.10±0.20 |
38.0mm | 39.5±1.0 | 0.55±0.05 | 19.0 | 1.10±0.20 |
40.0mm | 41.5±1.0 | 0.55±0.05 | 20.0 | 1.10±0.20 |
45.0mm | 47.0±1.0 | 0.60±0.05 | 23.0 | 1.15±0.20 |
50.0mm | 52.0±1.0 | 0.60±0.05 | 25.0 | 1.15±0.20 |
