Displacement : 990 cc/rev.
Pressure : Max. 15 Bar
Viscosity : Max. 1,000,000 cp
Temperature : Max. 200 ℃

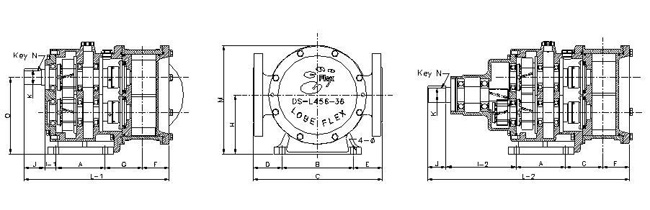

Dimensions
A: 135 mm, B: 165mm, C: 360mm, D: 92mm, E: 92mm, F: 80mm, G: 113mm, H: 160mm, I-1: 51mm, I-2: 189mm, J: 60mm, K: 38mm, L-1: 434mm, L-2: 572mm, M: 293mm, N: 10x8, O: 213mm, Diameter for 4 Holes of Base: 13mm
Applications : Chemicals, Oil, Waste Water, Excretions, etc..
