Displacement : 2,805 cc/rev.
Pressure : Max. 15 Bar
Viscosity : Max. 1,000,000 cp
Temperature : Max. 200 ℃

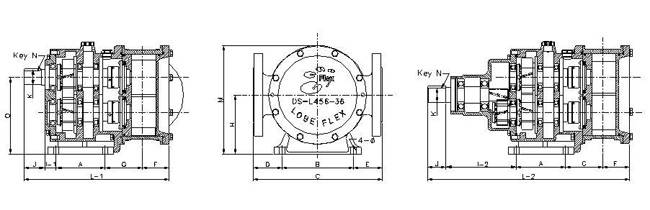

Dimensions
A: 180 mm, B: 210mm, C: 440mm, D: 115mm, E: 115mm, F: 106mm, G: 127mm, H: 200mm, I-1: 48mm, I-2: 224mm, J: 70mm, K: 52mm, L-1: 531mm, L-2: 707mm, M: 373mm, N: 16x12, O: 265.2mm, Diameter for 4 Holes of Base: 17mm
Applications : Chemicals, Oil, Waste Water, Excretions, etc..
