Displacement : 5,137 cc/rev.
Pressure : Max. 15 Bar\
Viscosity : Max. 1,000,000 cp
Temperature : Max. 200 ℃

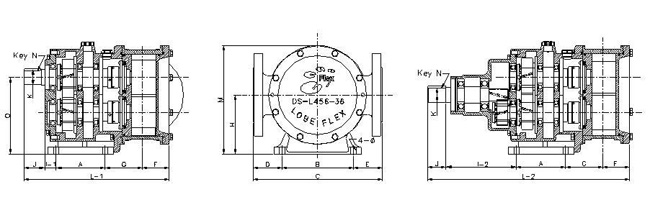

Dimensions
A: 200 mm, B: 240mm, C: 542mm, D: 170mm, E: 170mm, F: 120mm, G: 155mm, H: 250mm, I-1: 60mm, I-2: 266mm, J: 75mm, K: 62mm, L-1: 610mm, L-2: 816mm, M: 467mm, N: 16x12, O: 331.5mm, Diameter for 4 Holes of Base: 22mm
Applications : Chemicals, Oil, Waste Water, Excretions, etc..
