- Displacement : 45.5 cc/rev.
- Pressure : Max. 2.7 Bar
- Viscosity : Max. 5,000 cp
- Temperature : Max. 120 ℃

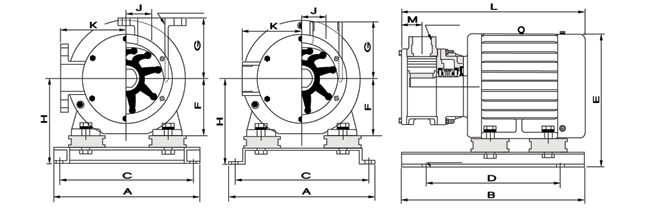

Dimensions
A: 230mm, B: 340mm, C: 205mm, D: 275mm, E: 235mm, F: 80mm, G: 55mm, H: 145mm, J: 32mm, K: 55mm, L: 343mm, M: 34mm, Inlet & Outlet Dia.: 25A-PT, Diameter for 4 Holes of Base: 13mm
Applications : Waste-Water, Chemical, Excretions, Sea-Water, Food, etc..
