Displacement : 62.5 cc/rev.
Pressure : Max. 5.5 Bar
Viscosity : Max. 5,000 cp
Temperature : Max. 120 ℃

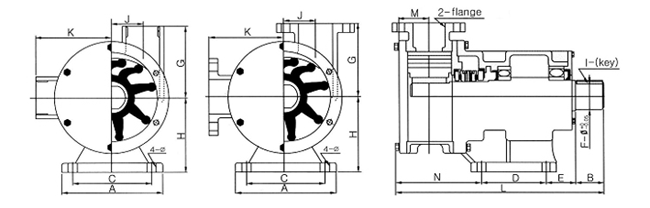

Dimensions
A: 100mm, B: 30mm, C: 70mm, D: 70mm, E: 37mm, F: 22mm, G: 75mm, H: 102mm, I: 7x7, J: 42mm, K: 78mm, L: 264mm, M: 37mm, N: 90mm, Inlet & Outlet Dia.: 25A-PT, Diameter for 4 Holes of Base: 11mm
Applications : Waste-Water, Chemical, Excretions, Sea-Water, Food, etc..
