- Displacement : 57.1 cc/rev.
- Pressure : Max. 2.7 Bar
- Viscosity : Max. 5,000 cp
- Temperature : Max. 120 ℃

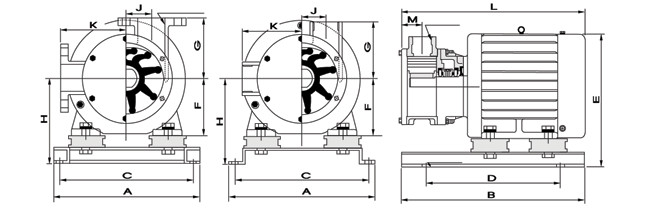

Dimensions
A: 265mm, B: 385mm, C: 240mm, D: 315mm, E: 255mm, F: 90mm, G: 55mm, H: 155mm, J: 36mm, K: 63mm, L: 385mm, M: 36mm, Inlet & Outlet Dia.: 32A-PT, Diameter for 4 Holes of Base: 13mm
Applications : Waste-Water, Chemical, Excretions, Sea-Water, Food, etc..
