Displacement : 214.2 cc/rev.
Pressure : Max. 5 Bar
Viscosity : Max. 5,000 cp
Temperature : Max. 120 ℃

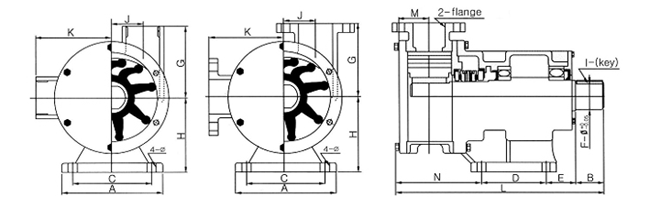

Dimensions
A: 120mm, B: 35mm, C: 90mm, D: 90mm, E: 48mm, F: 32mm, G: 95mm, H: 112mm, I: 10x8, J: 66mm, K: 95mm, L: 351mm, M: 57mm, N: 121mm, Inlet & Outlet Dia.: 65A-PT, Diameter for 4 Holes of Base: 11mm
Applications : Waste-Water, Chemical, Excretions, Sea-Water, Food, etc..
