Displacement : 348.2 cc/rev.
Pressure : Max. 5.5 Bar
Viscosity : Max. 5,000 cp
Temperature : Max. 120 ℃

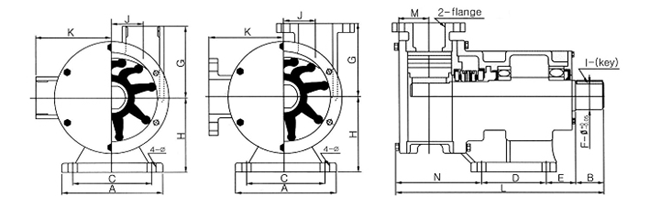

Dimensions
A: 190mm, B: 42mm, C: 140mm, D: 140mm, E: 68mm, F: 42mm, G: 120mm, H: 132mm, I: 12x8, J: 45mm, K: 120mm, L: 440mm, M: 63mm, N: 127mm, Inlet & Outlet Dia.: 65A-PT, Diameter for 4 Holes of Base: 13mm
Applications : Waste-Water, Chemical, Excretions, Sea-Water, Food, etc..
