- Displacement : 401.7 cc/rev.
- Pressure : Max. 5.5 Bar
- Viscosity : Max. 5,000 cp
- Temperature : Max. 120 ℃

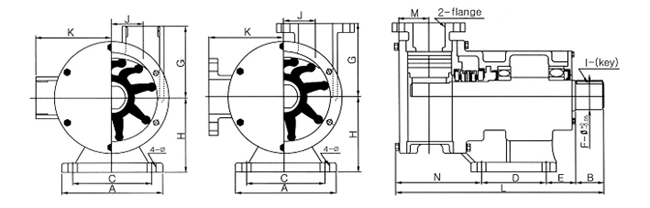

Dimensions
A: 190mm, B: 42mm, C: 140mm, D: 140mm, E: 68mm, F: 42mm, G: 120mm, H: 132mm, I: 12x8, J: 50mm, K: 160mm, L: 457mm, M: 71mm, N: 136mm, Inlet & Outlet Dia.: 65A Flange, Diameter for 4 Holes of Base: 13mm
Applications : Waste-Water, Chemical, Excretions, Sea-Water, Food, etc..
