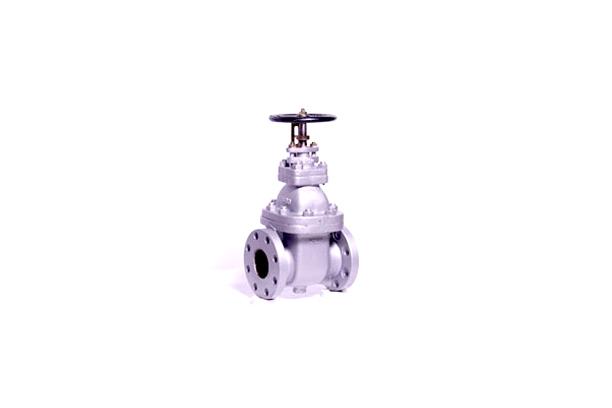

제품명 | 게이트 밸브 |
크기 | - |
재질 | Bronze |
Features
Bronze : Rising stem type gate valves for marine use
- 5K JIS F 7367
- 10K JIS F 7368
Pressure rating & test pressure(kgf/㎠)
FLUID CONDITION | RATING | ||
5K | 10K | ||
Saturated Steam | 2 | 2 | |
Oil and Pulsation Water | 5 | 10 | |
Non-Shock Water Up to 120℃ | 7 | 14 | |
Test Pressure | Shell Test | 10.5 | 21 |
Seat Test | 7.7 | 15.4 |
Basic Design
End connection
- R.F Flanged ends(JIS B2210/ JIS B2220)
- F.F Flanged ends(JIS B2210/ JIS B2220)
제품규격
Valve Rating | Position | Valve size | ||||
15A | 20A | 25A | 32A | 40A | ||
5K JIS F 7367 | L | 90 | 100 | 110 | 130 | 140 |
H | 175 | 200 | 220 | 250 | 290 | |
W | 80 | 80 | 100 | 100 | 125 | |
10K JIS F 7368 | L | 100 | 110 | 120 | 140 | 150 |
H | 175 | 200 | 220 | 250 | 290 | |
W | 80 | 80 | 100 | 100 | 125 |
