DP4 low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
Very good performance in lubricated applications
Good performance in greased applications
Suitable for linear, oscillating and rotating movements
Lead-free material compliant to ELV, WEEE, and RoHS specifications
Approved to standard DIN EN 1797: 2002-02 and ISO 21010: 2004-04 (Cryogenic Vessels – Gas/Material Compatibility) for piping, valves, fittings and other components in both gaseous and liquid oxygen for up to maximum temperature of 60°C and oxygen pressure of 25 bars. Contact GGB for further details.
Approved to standard FAR 25.853 and FAR 25.855 (Federal Aviation Regulations) and ASTM E162:2016 – surface flammability testing for aircraft interior applications
Approved to standard DIN EN 1797 and ISO 21010 (Cryogenic Vessels – Gas/Material Compatibility) for piping, valves, fittings and other components in both gaseous and liquid oxygen for up to maximum temperature of 60°C and oxygen pressure of 25 bars. Contact GGB for further details.
Tested acc. to ASTM E595/ECSS-Q-ST-70-02C - Outgassing properties of materials used in Spacecraft equipment
AVAILABILITY Bearing forms available in standard dimensions
Cylindrical bushes

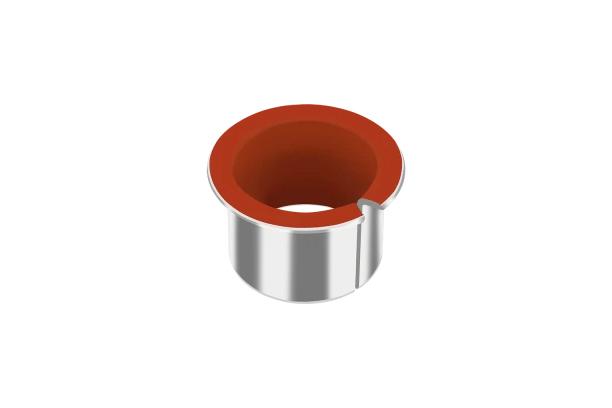

Flanged bushes
Sliding plates

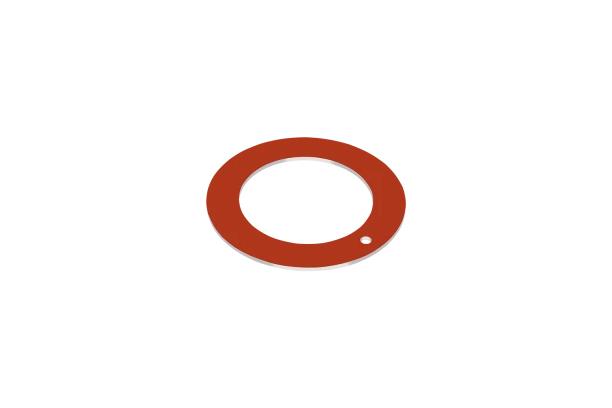

Thrust washers
Flanged washers

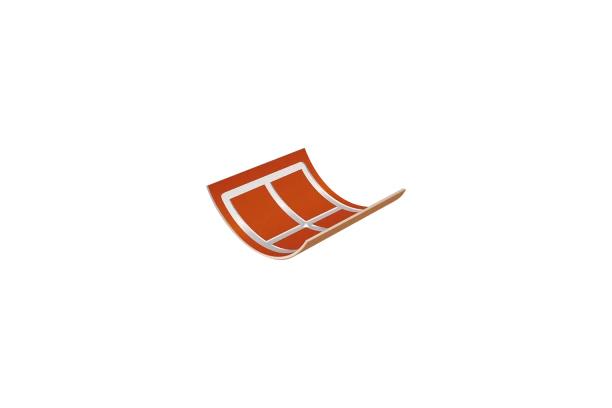

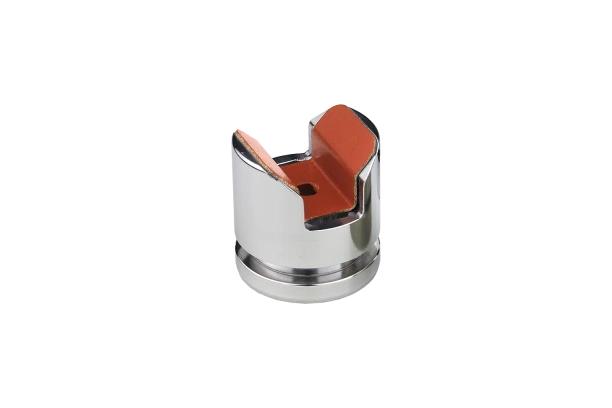

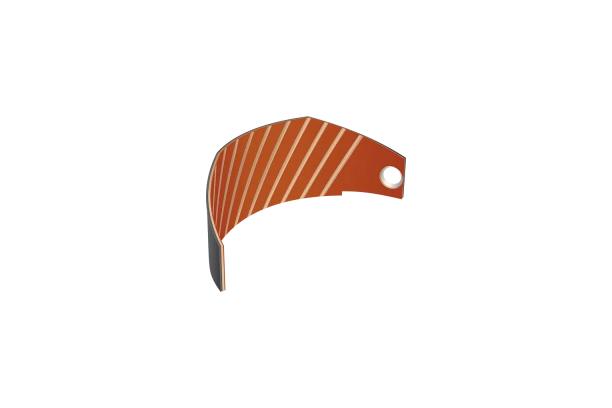

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs
