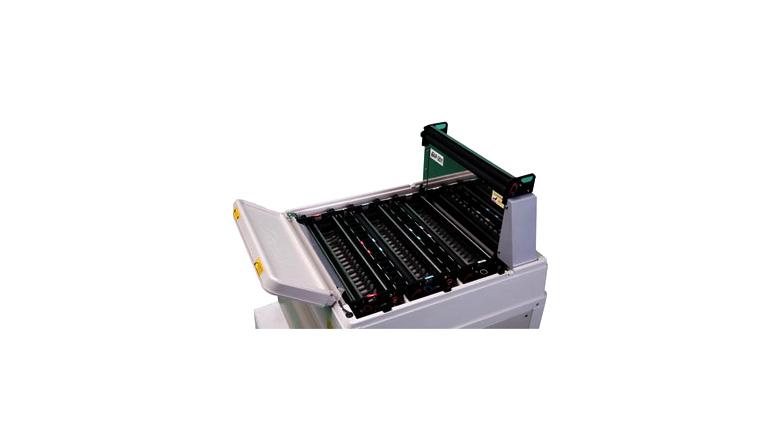

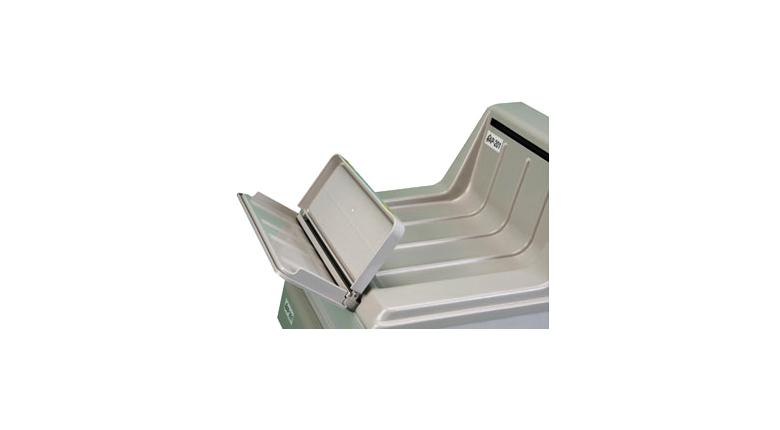

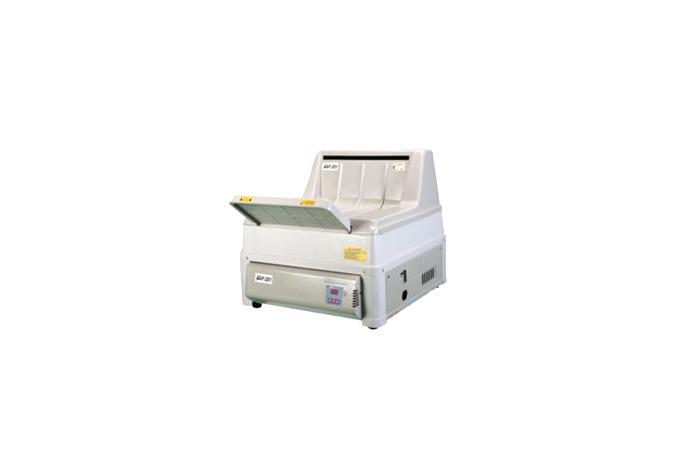

X-ray Film Auto Processor
모델명
GAP-201
자료
GAP-101
구매정보
provider logo
(주)지메디

의료기기 전문업체, Film Processor, Endotracheal Tube Holder, Suction Ball Electrode 등

연락처
02-2632-9256
이메일
gmedir@yahoo.co.kr
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
(주)지메디[바로가기]
브랜드
-
SKU
55762
제품명
X-ray Film Auto Processor
모델명
GAP-201
사이즈
-
중량
-
제품 상세 정보

- Easy to control by using microprocessor chip

- Best durability   adequate humidity

- Minimum installation space

- Various developing time 90 / 120 / 180 / 210 sec (60 sec, Option)



Specification

Model GAP-201
Film Transport Method Continuous roller transport
Film Type and Sizes Sheet film
4”×4” (10×10cm)
8”×10”(20.3×25.4cm)
10”×12”(25.4×30.5cm)
11”×14”(28×35cm)
14”×14”(35×35cm)
14”×17”(35×43cm)
Processing Capacity 35×43cm - 45 Sheet / Hour
25×30cm - 70 Sheet / Hour
cess Cycle Swatching Available by a service engineer
Tank Volume Developer 3.5 Liter
Fixer 3.5 Liter
Wash 3.5 Liter
Replenishment Tanks Developer 25 Liter
Fixer 25 Liter
Wash 25 Liter
Dimension Height 540 mm
Width 575 mm
Length 716 mm
Power Supply AC. 110/220V single phase 50/60 hz
Power Consumption Stand-by : 0.55 kw. Operation : 1.1kw
(Save Energy World No One)
Weight Approx.35kg (without solutions)
Accessories Standard Replenishment Tank
Exhaust Hose, Measuring Cup
Installation Parts kit
Operation Manual(CD-ROM)
Option Water Filter Assembly, Table

*The above specifications are subject to change without prior notice
