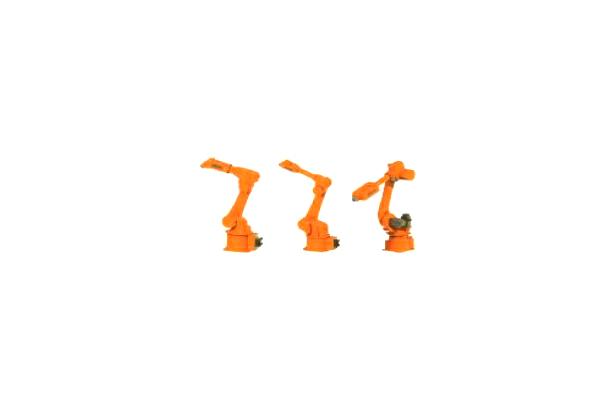

4~6축, 가반 하중 3~165kg, 작업범위 950~3100mm
Model | RVR6- 0030950T | RVR6- 0061500T | RVR6- 0102100T | RVR6- 0201850T | RVR6- 0302300T | RVR6- 0502100T | RVR4- 0101500B | RVR4- 0201850B | |||||||
Axes | 6 | 4 | |||||||||||||
Payload | 3 kg | 6 kg | 10 kg | 20 kg | 30 kg | 50 kg | 10 kg | 20 kg | |||||||
Max. Reach | 950 mm | 1500 mm | 2100 mm | 1850 mm | 2300 mm | 2100 mm | 1500 mm | 1850 mm | |||||||
Repeatability | ±0.05 mm | ±0.05 mm | ±0.08 mm | ±0.08 mm | ±0.15 mm | ±0.2 mm | ±0.05 mm | ±0.05 mm | |||||||
Weight | 72 kg | 120 kg | 255 kg | 250 kg | 700 kg | 750 kg | 110 kg | 230 kg | |||||||
Application | Pick & Place | Transfer / Palletizing |
Model | RVR4- 0502400B | RVR4- 1002100B | RVR4-1653100B | RVR6- 0061500P | RVR6- 0061950P | RVR6- 0062400P | RVR6- 0061500H | RVR6- 0061850H | RVR6- 0061000T | |||||||
Payload | 4 | 5 | ||||||||||||||
Payload | 50 kg | 100 kg | 165 kg | 6 kg | 6 kg | 6 kg | 6 kg | 6 kg | 6 kg | |||||||
Max. Reach | 2400 mm | 2100 mm | 3100 mm | 1500 mm | 1900 mm | 2400 mm | 1500 mm | 1850 mm | 1000 mm | |||||||
Repeatability | ±0.2 mm | ±0.2 mm | ±0.2 mm | ±0.05 mm | ±0.08 mm | ±0.08 mm | ±0.05 mm | ±0.05 mm | ±0.05 mm | |||||||
Weight | 660 kg | 650 kg | 1000 kg | 125 kg | 260 kg | 270 kg | 125 kg | 235 kg | 50 | |||||||
Application | Transfer / Palletizing | Material handling / Material removal | Welding | Pick & Place |
