통신 인터페이스, 컨버터, 인디케이터, 아이솔레이터 등

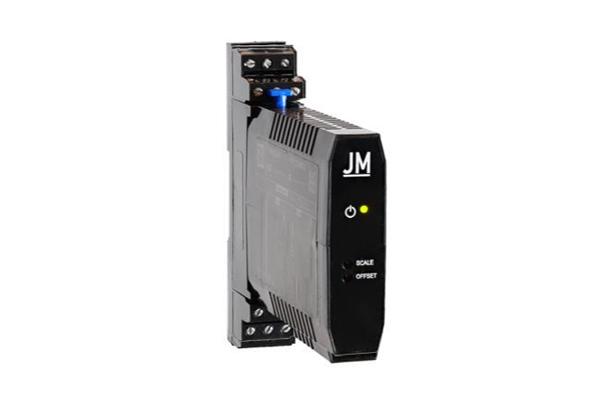

In order to respond to signal isolation and conditioning problems, Process's analog range of isolated analog converters is available in 2 versions.
Analog technology allows signal processing with a response time of less than one ms.
The use of high-performance components in an extended temperature range guarantees very high reliability and very low thermal drift.
JK 3000 is guaranteed for 5 years
Hot pluggable | Universal power supply | MODBUS-RTU |
JK-3000A1 Converter without display Inputs : Process input 0-100mV; 0-10V; ±10V; 0-20mA; 4-20mA Outputs : 1 analog output 22.5mm case |
JK 3000A1-F Converter without display Inputs : Process input 0-100mV; 0-10V; ±10V; 0-20mA; 4-20mA Outputs : 1 analog output 22.5mm case Protection against lightning strikes |
JK 3000A1-P Converter without display Inputs : Process input 0-100mV; 0-10V; ±10V; 0-20mA; 4-20mA Outputs : 1 passive Current analog output 22.5m box |
JK-3000A2 Converter without display Inputs : Process input 0-100mV; 0-10V; ±10V; 0-20mA; 4-20mA Outputs : 2 analog outputs 22.5m box |
JK 3000A2-F Converter without display Inputs : Process input 0-100mV; 0-10V; ±10V; 0-20mA; 4-20mA Outputs : 2 analog outputs 22.5mm housing Protection against lightning strikes |
JK 3000A2-P Converter without display Inputs : Process input 0-100mV; 0-10V; ±10V; 0-20mA; 4-20mA Outputs : 2 analog outputs 22.5mm case |
