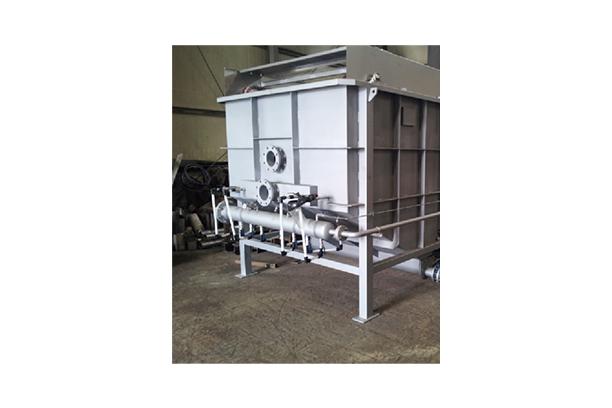

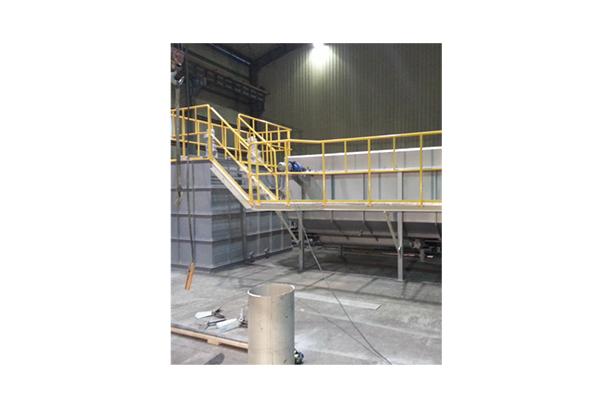

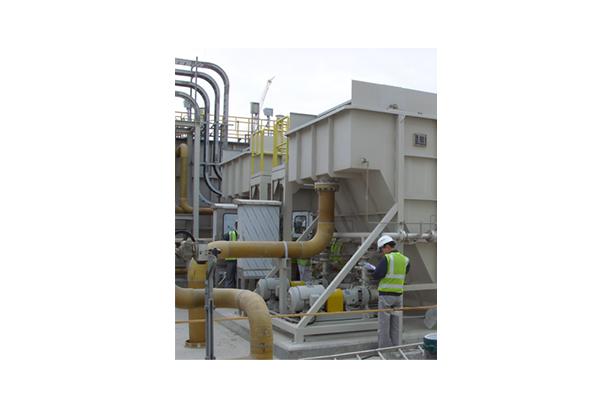

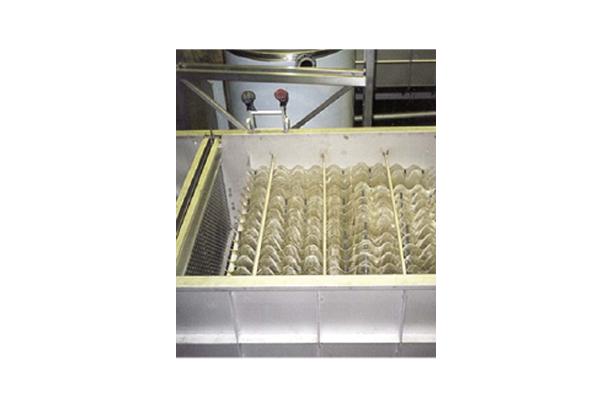

PWF/CPF (Counter-current DAF-principle)
월류부하(오염물질의 부상속도)가 매우 낮은 중(中)농도의 폐수처리에 적합 (1.2~1.5 ㎥ / ㎡ / hr)
Type
Type | Capacity (㎥/hr) |
Over Flow Load (㎥/㎡/hr) |
Area (㎡) |
Dimension (mm) | Nozzle (A) | |||||
---|---|---|---|---|---|---|---|---|---|---|
Length (A) | Width (B) | Heigh (C) | Inlet (D) | Float Discharge (E) |
Outlet (F) | Bottom Sluge (G) |
||||
PWF10 | 10 | 1.47 | 1.1 | 2200 | 1400 | 2100 | 80 | 80 | 80 | 80 |
PWF15 | 15 | 1.47 | 1.65 | 2200 | 1900 | 2100 | 80 | 80 | 80 | 80 |
PWF20 | 20 | 1.56 | 1.84 | 2900 | 1400 | 2700 | 100 | 100 | 100 | 100 |
PWF35 | 35 | 1.81 | 2.75 | 2900 | 1900 | 2700 | 125 | 100 | 125 | 100 |
PWF50 | 50 | 1.95 | 3.67 | 2900 | 2400 | 2700 | 150 | 150 | 150 | 100 |
PWF75 | 75 | 1.28 | 6.08 | 4400 | 2400 | 3500 | 200 | 150 | 200 | 150 |
PWF100 | 100 | 1.43 | 6.98 | 4800 | 2400 | 3800 | 200 | 200 | 225 | 150 |
PWF125 | 125 | 1.43 | 8.73 | 4800 | 2900 | 3800 | 250 | 200 | 250 | 150 |
PWF150 | 150 | 1.43 | 10.47 | 4800 | 3400 | 3800 | 300 | 200 | 300 | 150 |
CPF05 | 5 | 1.47 | 0.55 | 2200 | 900 | 2100 | 50 | 80 | 50 | 50 |
CPF10 | 10 | 1.47 | 1.1 | 2200 | 1400 | 2100 | 80 | 80 | 80 | 80 |
CPF15 | 15 | 1.47 | 1.65 | 2200 | 1900 | 2100 | 80 | 80 | 80 | 80 |
CPF20 | 20 | 1.5 | 2 | 2200 | 2400 | 2050 | 80 | 100 | 100 | 100 |
